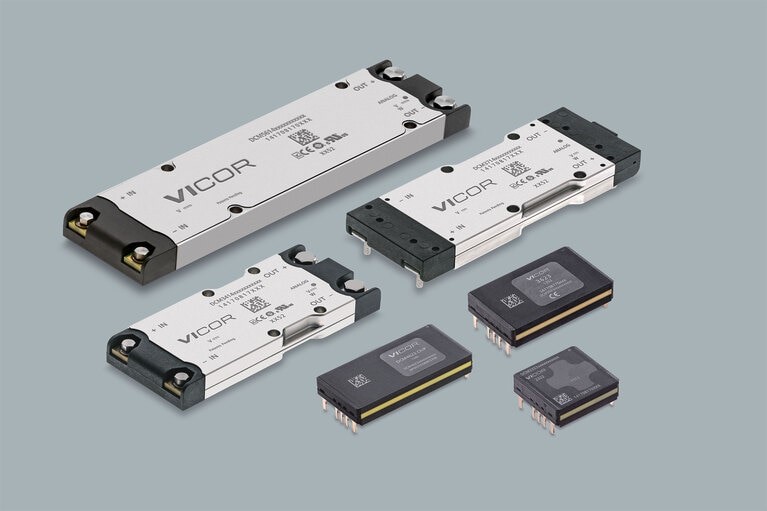

MIL-COTS DCM™ DC-DC 컨버터 모듈

28V 및 270V 라인 입력을 위한
견고한 고전력 컨버터

DCM은 조절되지 않은 넓은 범위의 입력에서 작동하여 절연된 출력을 생성하는 절연되고 조절된 DC-DC 컨버터이다. 고주파 제로 전압 스위칭(ZVS) 토폴로지를 사용하는 DCM 컨버터는 지정된 입력 라인 범위에서 높은 효율을 제공한다. 독립적으로 또는 다운스트림 PoL(Point of Load) 제품과 함께 사용되는 모듈식 DCM 컨버터는 효율적인 전력 분배를 지원하여 다양한 비조절 전원에서 PoL까지 우수한 전력 시스템 성능과 연결성을 제공한다. DCM VIA 모듈은 통합 EMI 필터링, 엄격한 출력 전압 조정 및 보조 PM 버스 제어 인터페이스를 통해 더 높은 수준의 기능을 제공한다.

FAMILY OVERVIEW

제품 목록

Image		Input (V)	Output (V)	Power (W)	Control Interface	Optimized for	Mounting	Temperature	Dimensions	Dimensions	Package
Part Number: DCM3623T50M04A2M70	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 3.3 (2.97 - 3.63)	Power (W): 120.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Through Hole	Temperature: -55 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM3623T50M04A2T70	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 3.3 (2.97 - 3.63)	Power (W): 120.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Through Hole	Temperature: -40 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM3623T50M04A2T00	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 3.3 (2.97 - 3.63)	Power (W): 120.0	Control Interface: Analog	Optimized for: Array	Mounting: Through Hole	Temperature: -40 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM3623T50M04A2M00	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 3.3 (2.97 - 3.63)	Power (W): 120.0	Control Interface: Analog	Optimized for: Array	Mounting: Through Hole	Temperature: -55 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM3414V50M06A8T01	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 5.0 (4.0 - 5.5)	Power (W): 180.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Chassis Mount	Temperature: -40 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3414B50M06A8C05	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 5.0 (4.0 - 5.5)	Power (W): 180.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Short Pin	Temperature: -20 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3414V50M06A8C01	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 5.0 (4.0 - 5.5)	Power (W): 180.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Chassis Mount	Temperature: -20 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3414V50M06A8M01	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 5.0 (4.0 - 5.5)	Power (W): 180.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Chassis Mount	Temperature: -55 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3414B50M06A8M09	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 5.0 (4.0 - 5.5)	Power (W): 180.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Long Pin	Temperature: -55 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3414B50M06A8M05	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 5.0 (4.0 - 5.5)	Power (W): 180.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Short Pin	Temperature: -55 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3414B50M06A8T05	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 5.0 (4.0 - 5.5)	Power (W): 180.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Short Pin	Temperature: -40 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3414B50M06A8T09	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 5.0 (4.0 - 5.5)	Power (W): 180.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Long Pin	Temperature: -40 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3414B50M06A8C09	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 5.0 (4.0 - 5.5)	Power (W): 180.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Long Pin	Temperature: -20 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3623T50M06A8M70	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 5.0 (4.0 - 5.5)	Power (W): 180.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Through Hole	Temperature: -55 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM3623T50M06A8T70	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 5.0 (4.0 - 5.5)	Power (W): 180.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Through Hole	Temperature: -40 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM3623T50M06A8M00	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 5.0 (4.0 - 5.5)	Power (W): 180.0	Control Interface: Analog	Optimized for: Array	Mounting: Through Hole	Temperature: -55 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM3623T50M06A8T00	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 5.0 (4.0 - 5.5)	Power (W): 180.0	Control Interface: Analog	Optimized for: Array	Mounting: Through Hole	Temperature: -40 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM3414B50M13C2T09	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 12.0 (7.2 - 13.2)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Long Pin	Temperature: -40 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3414B50M13C2C09	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 12.0 (7.2 - 13.2)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Long Pin	Temperature: -20 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3414B50M13C2C05	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 12.0 (7.2 - 13.2)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Short Pin	Temperature: -20 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3414V50M13C2C01	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 12.0 (7.2 - 13.2)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Chassis Mount	Temperature: -20 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3414B50M13C2T05	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 12.0 (7.2 - 13.2)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Short Pin	Temperature: -40 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3414V50M13C2T01	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 12.0 (7.2 - 13.2)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Chassis Mount	Temperature: -40 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3414V50M13C2M01	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 12.0 (7.2 - 13.2)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Chassis Mount	Temperature: -55 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3414B50M13C2M09	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 12.0 (7.2 - 13.2)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Long Pin	Temperature: -55 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3414B50M13C2M05	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 12.0 (7.2 - 13.2)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Short Pin	Temperature: -55 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3623T50M13C2M70	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 12.0 (7.2 - 13.2)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Through Hole	Temperature: -55 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM3623T50M13C2T70	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 12.0 (7.2 - 13.2)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Through Hole	Temperature: -40 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM3623T50M13C2T00	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 12.0 (7.2 - 13.2)	Power (W): 320.0	Control Interface: Analog	Optimized for: Array	Mounting: Through Hole	Temperature: -40 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM3623T50M13C2M00	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 12.0 (7.2 - 13.2)	Power (W): 320.0	Control Interface: Analog	Optimized for: Array	Mounting: Through Hole	Temperature: -55 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM3414V50M17C2T01	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 15.0 (9.0 - 16.5)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Chassis Mount	Temperature: -40 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3414B50M17C2T09	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 15.0 (9.0 - 16.5)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Long Pin	Temperature: -40 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3414V50M17C2C01	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 15.0 (9.0 - 16.5)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Chassis Mount	Temperature: -20 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3414B50M17C2M05	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 15.0 (9.0 - 16.5)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Short Pin	Temperature: -55 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3414B50M17C2M09	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 15.0 (9.0 - 16.5)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Long Pin	Temperature: -55 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3414V50M17C2M01	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 15.0 (9.0 - 16.5)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Chassis Mount	Temperature: -55 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3414B50M17C2C05	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 15.0 (9.0 - 16.5)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Short Pin	Temperature: -20 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3414B50M17C2C09	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 15.0 (9.0 - 16.5)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Long Pin	Temperature: -20 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3414B50M17C2T05	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 15.0 (9.0 - 16.5)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Short Pin	Temperature: -40 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3623T50M17C2M70	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 15.0 (9.0 - 16.5)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Through Hole	Temperature: -55 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM3623T50M17C2T70	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 15.0 (9.0 - 16.5)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Through Hole	Temperature: -40 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM3623T50M17C2M00	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 15.0 (9.0 - 16.5)	Power (W): 320.0	Control Interface: Analog	Optimized for: Array	Mounting: Through Hole	Temperature: -55 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM3623T50M17C2T00	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 15.0 (9.0 - 16.5)	Power (W): 320.0	Control Interface: Analog	Optimized for: Array	Mounting: Through Hole	Temperature: -40 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM3414B50M26C2T05	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 24.0 (14.4 - 26.4)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Short Pin	Temperature: -40 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3414B50M26C2M05	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 24.0 (14.4 - 26.4)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Short Pin	Temperature: -55 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3414V50M26C2M01	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 24.0 (14.4 - 26.4)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Chassis Mount	Temperature: -55 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3414B50M26C2M09	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 24.0 (14.4 - 26.4)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Long Pin	Temperature: -55 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3414V50M26C2C01	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 24.0 (14.4 - 26.4)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Chassis Mount	Temperature: -20 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3414V50M26C2T01	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 24.0 (14.4 - 26.4)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Chassis Mount	Temperature: -40 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3414B50M26C2T09	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 24.0 (14.4 - 26.4)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Long Pin	Temperature: -40 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3414B50M26C2C05	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 24.0 (14.4 - 26.4)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Short Pin	Temperature: -20 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3414B50M26C2C09	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 24.0 (14.4 - 26.4)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Long Pin	Temperature: -20 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3623T50M26C2M70	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 24.0 (14.4 - 26.4)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Through Hole	Temperature: -55 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM3623T50M26C2T70	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 24.0 (14.4 - 26.4)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Through Hole	Temperature: -40 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM3623T50M26C2T00	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 24.0 (14.4 - 26.4)	Power (W): 320.0	Control Interface: Analog	Optimized for: Array	Mounting: Through Hole	Temperature: -40 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM3623T50M26C2M00	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 24.0 (14.4 - 26.4)	Power (W): 320.0	Control Interface: Analog	Optimized for: Array	Mounting: Through Hole	Temperature: -55 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM3414B50M31C2T05	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 28.0 (16.8 - 30.8)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Short Pin	Temperature: -40 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3414B50M31C2C09	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 28.0 (16.8 - 30.8)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Long Pin	Temperature: -20 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3414B50M31C2C05	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 28.0 (16.8 - 30.8)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Short Pin	Temperature: -20 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3414V50M31C2T01	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 28.0 (16.8 - 30.8)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Chassis Mount	Temperature: -40 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3414V50M31C2M01	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 28.0 (16.8 - 30.8)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Chassis Mount	Temperature: -55 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3414B50M31C2M09	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 28.0 (16.8 - 30.8)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Long Pin	Temperature: -55 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3414B50M31C2M05	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 28.0 (16.8 - 30.8)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Short Pin	Temperature: -55 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3414B50M31C2T09	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 28.0 (16.8 - 30.8)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Long Pin	Temperature: -40 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3414V50M31C2C01	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 28.0 (16.8 - 30.8)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Chassis Mount	Temperature: -20 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3623T50M31C2M70	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 28.0 (22.0 - 30.8)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Through Hole	Temperature: -55 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM3623T50M31C2T70	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 28.0 (22.0 - 30.8)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Through Hole	Temperature: -40 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM3623T50M31C2M00	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 28.0 (22.0 - 30.8)	Power (W): 320.0	Control Interface: Analog	Optimized for: Array	Mounting: Through Hole	Temperature: -55 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM3623T50M31C2T00	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 28.0 (22.0 - 30.8)	Power (W): 320.0	Control Interface: Analog	Optimized for: Array	Mounting: Through Hole	Temperature: -40 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM3414V50M53C2T01	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 48.0 (28.8 - 52.8)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Chassis Mount	Temperature: -40 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3414V50M53C2M01	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 48.0 (28.8 - 52.8)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Chassis Mount	Temperature: -55 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3414B50M53C2M09	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 48.0 (28.8 - 52.8)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Long Pin	Temperature: -55 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3414B50M53C2T05	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 48.0 (28.8 - 52.8)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Short Pin	Temperature: -40 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3414B50M53C2C05	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 48.0 (28.8 - 52.8)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Short Pin	Temperature: -20 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3414V50M53C2C01	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 48.0 (28.8 - 52.8)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Chassis Mount	Temperature: -20 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3414B50M53C2M05	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 48.0 (28.8 - 52.8)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Short Pin	Temperature: -55 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3414B50M53C2T09	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 48.0 (28.8 - 52.8)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Long Pin	Temperature: -40 to 125°C	Dimensions mm: 85.90 x 35.50 x 9.40mm	Dimensions in.: 3.380 x 1.400 x 0.370in	Package: 3414 VIA
Part Number: DCM3623T50M53C2M70	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 48.0 (28.8 - 52.8)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Through Hole	Temperature: -55 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM3623T50M53C2T70	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 48.0 (28.8 - 52.8)	Power (W): 320.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Through Hole	Temperature: -40 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM3623T50M53C2T00	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 48.0 (28.8 - 52.8)	Power (W): 320.0	Control Interface: Analog	Optimized for: Array	Mounting: Through Hole	Temperature: -40 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM3623T50M53C2M00	Datasheet:	Input (V): 28.0 (16.0 - 50.0)	Output (V): 48.0 (28.8 - 52.8)	Power (W): 320.0	Control Interface: Analog	Optimized for: Array	Mounting: Through Hole	Temperature: -55 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM3623T50T0480M70	Datasheet:	Input (V): 30.0 (9.0 - 50.0)	Output (V): 3.3 (2.97 - 3.63)	Power (W): 80.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Through Hole	Temperature: -55 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM3623T50T0480T70	Datasheet:	Input (V): 30.0 (9.0 - 50.0)	Output (V): 3.3 (2.97 - 3.63)	Power (W): 80.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Through Hole	Temperature: -40 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM3623T50T0480T00	Datasheet:	Input (V): 30.0 (9.0 - 50.0)	Output (V): 3.3 (2.97 - 3.63)	Power (W): 80.0	Control Interface: Analog	Optimized for: Array	Mounting: Through Hole	Temperature: -40 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM3623T50T0480M00	Datasheet:	Input (V): 30.0 (9.0 - 50.0)	Output (V): 3.3 (2.97 - 3.63)	Power (W): 80.0	Control Interface: Analog	Optimized for: Array	Mounting: Through Hole	Temperature: -55 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM3623T50T0680M70	Datasheet:	Input (V): 30.0 (9.0 - 50.0)	Output (V): 5.0 (3.5 - 5.5)	Power (W): 80.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Through Hole	Temperature: -55 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM3623T50T0680T70	Datasheet:	Input (V): 30.0 (9.0 - 50.0)	Output (V): 5.0 (3.5 - 5.5)	Power (W): 80.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Through Hole	Temperature: -40 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM3623T50T0680M00	Datasheet:	Input (V): 30.0 (9.0 - 50.0)	Output (V): 5.0 (3.5 - 5.5)	Power (W): 80.0	Control Interface: Analog	Optimized for: Array	Mounting: Through Hole	Temperature: -55 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM3623T50T0680T00	Datasheet:	Input (V): 30.0 (9.0 - 50.0)	Output (V): 5.0 (3.5 - 5.5)	Power (W): 80.0	Control Interface: Analog	Optimized for: Array	Mounting: Through Hole	Temperature: -40 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM2322T50T1360T60	Datasheet:	Input (V): 30.0 (9.0 - 50.0)	Output (V): 12.0 (7.2 - 13.2)	Power (W): 60.0	Control Interface: Analog	Optimized for: Array/ Standalone	Mounting: Through Hole	Temperature: -40 to 125°C	Dimensions mm: 24.84 x 22.80 x 7.21mm	Dimensions in.: 0.978 x 0.898 x 0.284in	Package: 2322 ChiP
Part Number: DCM2322T50T1360M60	Datasheet:	Input (V): 30.0 (9.0 - 50.0)	Output (V): 12.0 (7.2 - 13.2)	Power (W): 60.0	Control Interface: Analog	Optimized for: Array/ Standalone	Mounting: Through Hole	Temperature: -55 to 125°C	Dimensions mm: 24.84 x 22.80 x 7.21mm	Dimensions in.: 0.978 x 0.898 x 0.284in	Package: 2322 ChiP
Part Number: DCM3623T50T13A6M70	Datasheet:	Input (V): 30.0 (9.0 - 50.0)	Output (V): 12.0 (7.2 - 13.2)	Power (W): 160.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Through Hole	Temperature: -55 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM3623T50T13A6T70	Datasheet:	Input (V): 30.0 (9.0 - 50.0)	Output (V): 12.0 (7.2 - 13.2)	Power (W): 160.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Through Hole	Temperature: -40 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM3623T50T13A6M00	Datasheet:	Input (V): 30.0 (9.0 - 50.0)	Output (V): 12.0 (7.2 - 13.2)	Power (W): 160.0	Control Interface: Analog	Optimized for: Array	Mounting: Through Hole	Temperature: -55 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM3623T50T13A6T00	Datasheet:	Input (V): 30.0 (9.0 - 50.0)	Output (V): 12.0 (7.2 - 13.2)	Power (W): 160.0	Control Interface: Analog	Optimized for: Array	Mounting: Through Hole	Temperature: -40 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM2322T50T1760M60	Datasheet:	Input (V): 30.0 (9.0 - 50.0)	Output (V): 15.0 (9.0 - 16.5)	Power (W): 60.0	Control Interface: Analog	Optimized for: Array/ Standalone	Mounting: Through Hole	Temperature: -55 to 125°C	Dimensions mm: 24.84 x 22.80 x 7.21mm	Dimensions in.: 0.978 x 0.898 x 0.284in	Package: 2322 ChiP
Part Number: DCM2322T50T1760T60	Datasheet:	Input (V): 30.0 (9.0 - 50.0)	Output (V): 15.0 (9.0 - 16.5)	Power (W): 60.0	Control Interface: Analog	Optimized for: Array/ Standalone	Mounting: Through Hole	Temperature: -40 to 125°C	Dimensions mm: 24.84 x 22.80 x 7.21mm	Dimensions in.: 0.978 x 0.898 x 0.284in	Package: 2322 ChiP
Part Number: DCM3623T50T17A6T70	Datasheet:	Input (V): 30.0 (9.0 - 50.0)	Output (V): 15.0 (9.0 - 16.5)	Power (W): 160.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Through Hole	Temperature: -40 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM3623T50T17A6M70	Datasheet:	Input (V): 30.0 (9.0 - 50.0)	Output (V): 15.0 (9.0 - 16.5)	Power (W): 160.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Through Hole	Temperature: -55 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM3623T50T17A6T00	Datasheet:	Input (V): 30.0 (9.0 - 50.0)	Output (V): 15.0 (9.0 - 16.5)	Power (W): 160.0	Control Interface: Analog	Optimized for: Array	Mounting: Through Hole	Temperature: -40 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM3623T50T17A6M00	Datasheet:	Input (V): 30.0 (9.0 - 50.0)	Output (V): 15.0 (9.0 - 16.5)	Power (W): 160.0	Control Interface: Analog	Optimized for: Array	Mounting: Through Hole	Temperature: -55 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM2322T50T2660M60	Datasheet:	Input (V): 30.0 (9.0 - 50.0)	Output (V): 24.0 (14.4 - 26.4)	Power (W): 60.0	Control Interface: Analog	Optimized for: Array/ Standalone	Mounting: Through Hole	Temperature: -55 to 125°C	Dimensions mm: 24.84 x 22.80 x 7.21mm	Dimensions in.: 0.978 x 0.898 x 0.284in	Package: 2322 ChiP
Part Number: DCM2322T50T2660T60	Datasheet:	Input (V): 30.0 (9.0 - 50.0)	Output (V): 24.0 (14.4 - 26.4)	Power (W): 60.0	Control Interface: Analog	Optimized for: Array/ Standalone	Mounting: Through Hole	Temperature: -40 to 125°C	Dimensions mm: 24.84 x 22.80 x 7.21mm	Dimensions in.: 0.978 x 0.898 x 0.284in	Package: 2322 ChiP
Part Number: DCM3623T50T26A6M00	Datasheet:	Input (V): 30.0 (9.0 - 50.0)	Output (V): 24.0 (14.4 - 26.4)	Power (W): 160.0	Control Interface: Analog	Optimized for: Array	Mounting: Through Hole	Temperature: -55 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM3623T50T26A6T00	Datasheet:	Input (V): 30.0 (9.0 - 50.0)	Output (V): 24.0 (14.4 - 26.4)	Power (W): 160.0	Control Interface: Analog	Optimized for: Array	Mounting: Through Hole	Temperature: -40 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM2322T50T3160M60	Datasheet:	Input (V): 30.0 (9.0 - 50.0)	Output (V): 28.0 (16.8 - 30.8)	Power (W): 60.0	Control Interface: Analog	Optimized for: Array/ Standalone	Mounting: Through Hole	Temperature: -55 to 125°C	Dimensions mm: 24.84 x 22.80 x 7.21mm	Dimensions in.: 0.978 x 0.898 x 0.284in	Package: 2322 ChiP
Part Number: DCM2322T50T3160T60	Datasheet:	Input (V): 30.0 (9.0 - 50.0)	Output (V): 28.0 (16.8 - 30.8)	Power (W): 60.0	Control Interface: Analog	Optimized for: Array/ Standalone	Mounting: Through Hole	Temperature: -40 to 125°C	Dimensions mm: 24.84 x 22.80 x 7.21mm	Dimensions in.: 0.978 x 0.898 x 0.284in	Package: 2322 ChiP
Part Number: DCM3623T50T31A6M70	Datasheet:	Input (V): 30.0 (9.0 - 50.0)	Output (V): 28.0 (16.8 - 30.8)	Power (W): 160.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Through Hole	Temperature: -55 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM3623T50T31A6T70	Datasheet:	Input (V): 30.0 (9.0 - 50.0)	Output (V): 28.0 (16.8 - 30.8)	Power (W): 160.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Through Hole	Temperature: -40 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM3623T50T31A6M00	Datasheet:	Input (V): 30.0 (9.0 - 50.0)	Output (V): 28.0 (16.8 - 30.8)	Power (W): 160.0	Control Interface: Analog	Optimized for: Array	Mounting: Through Hole	Temperature: -55 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM3623T50T31A6T00	Datasheet:	Input (V): 30.0 (9.0 - 50.0)	Output (V): 28.0 (16.8 - 30.8)	Power (W): 160.0	Control Interface: Analog	Optimized for: Array	Mounting: Through Hole	Temperature: -40 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM2322T50T5360M60	Datasheet:	Input (V): 30.0 (9.0 - 50.0)	Output (V): 48.0 (28.8 - 52.8)	Power (W): 60.0	Control Interface: Analog	Optimized for: Array/ Standalone	Mounting: Through Hole	Temperature: -55 to 125°C	Dimensions mm: 24.84 x 22.80 x 7.21mm	Dimensions in.: 0.978 x 0.898 x 0.284in	Package: 2322 ChiP
Part Number: DCM2322T50T5360T60	Datasheet:	Input (V): 30.0 (9.0 - 50.0)	Output (V): 48.0 (28.8 - 52.8)	Power (W): 60.0	Control Interface: Analog	Optimized for: Array/ Standalone	Mounting: Through Hole	Temperature: -40 to 125°C	Dimensions mm: 24.84 x 22.80 x 7.21mm	Dimensions in.: 0.978 x 0.898 x 0.284in	Package: 2322 ChiP
Part Number: DCM3623T50T53A6M00	Datasheet:	Input (V): 30.0 (9.0 - 50.0)	Output (V): 48.0 (28.8 - 52.8)	Power (W): 160.0	Control Interface: Analog	Optimized for: Array	Mounting: Through Hole	Temperature: -55 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM3623T50T53A6T00	Datasheet:	Input (V): 30.0 (9.0 - 50.0)	Output (V): 48.0 (28.8 - 52.8)	Power (W): 160.0	Control Interface: Analog	Optimized for: Array	Mounting: Through Hole	Temperature: -40 to 125°C	Dimensions mm: 38.72 x 22.80 x 7.21mm	Dimensions in.: 1.524 x 0.898 x 0.284in	Package: 3623 ChiP
Part Number: DCM4623TD2K04A5M70	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 3.3 (2.97 - 3.63)	Power (W): 150.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Through Hole	Temperature: -55 to 125°C	Dimensions mm: 47.91 x 22.80 x 7.21mm	Dimensions in.: 1.886 x 0.898 x 0.284in	Package: 4623 ChiP
Part Number: DCM4623TD2K04A5T70	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 3.3 (2.97 - 3.63)	Power (W): 150.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Through Hole	Temperature: -40 to 125°C	Dimensions mm: 47.91 x 22.80 x 7.21mm	Dimensions in.: 1.886 x 0.898 x 0.284in	Package: 4623 ChiP
Part Number: DCM4623TD2K04A5M00	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 3.3 (2.97 - 3.63)	Power (W): 150.0	Control Interface: Analog	Optimized for: Array	Mounting: Through Hole	Temperature: -55 to 125°C	Dimensions mm: 47.91 x 22.80 x 7.21mm	Dimensions in.: 1.886 x 0.898 x 0.284in	Package: 4623 ChiP
Part Number: DCM4623TD2K04A5T00	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 3.3 (2.97 - 3.63)	Power (W): 150.0	Control Interface: Analog	Optimized for: Array	Mounting: Through Hole	Temperature: -40 to 125°C	Dimensions mm: 47.91 x 22.80 x 7.21mm	Dimensions in.: 1.886 x 0.898 x 0.284in	Package: 4623 ChiP
Part Number: DCM3714VD2K06B5T01	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 5.0 (4.0 - 5.5)	Power (W): 250.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Chassis Mount	Temperature: -40 to 125°C	Dimensions mm: 95.10 x 35.50 x 9.40mm	Dimensions in.: 3.750 x 1.400 x 0.370in	Package: 3714 VIA
Part Number: DCM3714BD2K06B5C05	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 5.0 (4.0 - 5.5)	Power (W): 250.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Short Pin	Temperature: -20 to 125°C	Dimensions mm: 95.10 x 35.50 x 9.40mm	Dimensions in.: 3.750 x 1.400 x 0.370in	Package: 3714 VIA
Part Number: DCM3714BD2K06B5T09	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 5.0 (4.0 - 5.5)	Power (W): 250.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Long Pin	Temperature: -40 to 125°C	Dimensions mm: 95.10 x 35.50 x 9.40mm	Dimensions in.: 3.750 x 1.400 x 0.370in	Package: 3714 VIA
Part Number: DCM3714BD2K06B5M09	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 5.0 (4.0 - 5.5)	Power (W): 250.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Long Pin	Temperature: -55 to 125°C	Dimensions mm: 95.10 x 35.50 x 9.40mm	Dimensions in.: 3.750 x 1.400 x 0.370in	Package: 3714 VIA
Part Number: DCM3714BD2K06B5C09	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 5.0 (4.0 - 5.5)	Power (W): 250.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Long Pin	Temperature: -20 to 125°C	Dimensions mm: 95.10 x 35.50 x 9.40mm	Dimensions in.: 3.750 x 1.400 x 0.370in	Package: 3714 VIA
Part Number: DCM3714VD2K06B5C01	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 5.0 (4.0 - 5.5)	Power (W): 250.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Chassis Mount	Temperature: -20 to 125°C	Dimensions mm: 95.10 x 35.50 x 9.40mm	Dimensions in.: 3.750 x 1.400 x 0.370in	Package: 3714 VIA
Part Number: DCM3714BD2K06B5M05	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 5.0 (4.0 - 5.5)	Power (W): 250.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Short Pin	Temperature: -55 to 125°C	Dimensions mm: 95.10 x 35.50 x 9.40mm	Dimensions in.: 3.750 x 1.400 x 0.370in	Package: 3714 VIA
Part Number: DCM3714BD2K06B5T05	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 5.0 (4.0 - 5.5)	Power (W): 250.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Short Pin	Temperature: -40 to 125°C	Dimensions mm: 95.10 x 35.50 x 9.40mm	Dimensions in.: 3.750 x 1.400 x 0.370in	Package: 3714 VIA
Part Number: DCM3714VD2K06B5M01	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 5.0 (4.0 - 5.5)	Power (W): 250.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Chassis Mount	Temperature: -55 to 125°C	Dimensions mm: 95.10 x 35.50 x 9.40mm	Dimensions in.: 3.750 x 1.400 x 0.370in	Package: 3714 VIA
Part Number: DCM4623TD2K06B5M70	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 5.0 (4.0 - 5.5)	Power (W): 250.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Through Hole	Temperature: -55 to 125°C	Dimensions mm: 47.91 x 22.80 x 7.21mm	Dimensions in.: 1.886 x 0.898 x 0.284in	Package: 4623 ChiP
Part Number: DCM4623TD2K06B5T70	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 5.0 (4.0 - 5.5)	Power (W): 250.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Through Hole	Temperature: -40 to 125°C	Dimensions mm: 47.91 x 22.80 x 7.21mm	Dimensions in.: 1.886 x 0.898 x 0.284in	Package: 4623 ChiP
Part Number: DCM4623TD2K06B5M00	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 5.0 (4.0 - 5.5)	Power (W): 250.0	Control Interface: Analog	Optimized for: Array	Mounting: Through Hole	Temperature: -55 to 125°C	Dimensions mm: 47.91 x 22.80 x 7.21mm	Dimensions in.: 1.886 x 0.898 x 0.284in	Package: 4623 ChiP
Part Number: DCM4623TD2K06B5T00	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 5.0 (4.0 - 5.5)	Power (W): 250.0	Control Interface: Analog	Optimized for: Array	Mounting: Through Hole	Temperature: -40 to 125°C	Dimensions mm: 47.91 x 22.80 x 7.21mm	Dimensions in.: 1.886 x 0.898 x 0.284in	Package: 4623 ChiP
Part Number: DCM3714VD2K13E0T01	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 12.0 (7.2 - 13.2)	Power (W): 500.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Chassis Mount	Temperature: -40 to 125°C	Dimensions mm: 95.10 x 35.50 x 9.40mm	Dimensions in.: 3.750 x 1.400 x 0.370in	Package: 3714 VIA
Part Number: DCM3714VD2K13E0M01	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 12.0 (7.2 - 13.2)	Power (W): 500.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Chassis Mount	Temperature: -55 to 125°C	Dimensions mm: 95.10 x 35.50 x 9.40mm	Dimensions in.: 3.750 x 1.400 x 0.370in	Package: 3714 VIA
Part Number: DCM3714BD2K13E0C09	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 12.0 (7.2 - 13.2)	Power (W): 500.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Long Pin	Temperature: -20 to 125°C	Dimensions mm: 95.10 x 35.50 x 9.40mm	Dimensions in.: 3.750 x 1.400 x 0.370in	Package: 3714 VIA
Part Number: DCM3714BD2K13E0T09	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 12.0 (7.2 - 13.2)	Power (W): 500.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Long Pin	Temperature: -40 to 125°C	Dimensions mm: 95.10 x 35.50 x 9.40mm	Dimensions in.: 3.750 x 1.400 x 0.370in	Package: 3714 VIA
Part Number: DCM3714BD2K13E0T05	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 12.0 (7.2 - 13.2)	Power (W): 500.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Short Pin	Temperature: -40 to 125°C	Dimensions mm: 95.10 x 35.50 x 9.40mm	Dimensions in.: 3.750 x 1.400 x 0.370in	Package: 3714 VIA
Part Number: DCM3714VD2K13E0C01	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 12.0 (7.2 - 13.2)	Power (W): 500.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Chassis Mount	Temperature: -20 to 125°C	Dimensions mm: 95.10 x 35.50 x 9.40mm	Dimensions in.: 3.750 x 1.400 x 0.370in	Package: 3714 VIA
Part Number: DCM3714BD2K13E0M05	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 12.0 (7.2 - 13.2)	Power (W): 500.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Short Pin	Temperature: -55 to 125°C	Dimensions mm: 95.10 x 35.50 x 9.40mm	Dimensions in.: 3.750 x 1.400 x 0.370in	Package: 3714 VIA
Part Number: DCM3714BD2K13E0M09	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 12.0 (7.2 - 13.2)	Power (W): 500.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Long Pin	Temperature: -55 to 125°C	Dimensions mm: 95.10 x 35.50 x 9.40mm	Dimensions in.: 3.750 x 1.400 x 0.370in	Package: 3714 VIA
Part Number: DCM3714BD2K13E0C05	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 12.0 (7.2 - 13.2)	Power (W): 500.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Short Pin	Temperature: -20 to 125°C	Dimensions mm: 95.10 x 35.50 x 9.40mm	Dimensions in.: 3.750 x 1.400 x 0.370in	Package: 3714 VIA
Part Number: DCM4623TD2K13E0M70	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 12.0 (7.2 - 13.2)	Power (W): 500.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Through Hole	Temperature: -55 to 125°C	Dimensions mm: 47.91 x 22.80 x 7.21mm	Dimensions in.: 1.886 x 0.898 x 0.284in	Package: 4623 ChiP
Part Number: DCM4623TD2K13E0T70	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 12.0 (7.2 - 13.2)	Power (W): 500.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Through Hole	Temperature: -40 to 125°C	Dimensions mm: 47.91 x 22.80 x 7.21mm	Dimensions in.: 1.886 x 0.898 x 0.284in	Package: 4623 ChiP
Part Number: DCM4623TD2K13E0M00	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 12.0 (7.2 - 13.2)	Power (W): 500.0	Control Interface: Analog	Optimized for: Array	Mounting: Through Hole	Temperature: -55 to 125°C	Dimensions mm: 47.91 x 22.80 x 7.21mm	Dimensions in.: 1.886 x 0.898 x 0.284in	Package: 4623 ChiP
Part Number: DCM4623TD2K13E0T00	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 12.0 (7.2 - 13.2)	Power (W): 500.0	Control Interface: Analog	Optimized for: Array	Mounting: Through Hole	Temperature: -40 to 125°C	Dimensions mm: 47.91 x 22.80 x 7.21mm	Dimensions in.: 1.886 x 0.898 x 0.284in	Package: 4623 ChiP
Part Number: DCM3714VD2K17E0M01	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 15.0 (9.0 - 16.5)	Power (W): 500.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Chassis Mount	Temperature: -55 to 125°C	Dimensions mm: 95.10 x 35.50 x 9.40mm	Dimensions in.: 3.750 x 1.400 x 0.370in	Package: 3714 VIA
Part Number: DCM4623TD2K17E0M70	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 15.0 (9.0 - 16.5)	Power (W): 500.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Through Hole	Temperature: -55 to 125°C	Dimensions mm: 47.91 x 22.80 x 7.21mm	Dimensions in.: 1.886 x 0.898 x 0.284in	Package: 4623 ChiP
Part Number: DCM4623TD2K17E0T70	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 15.0 (9.0 - 16.5)	Power (W): 500.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Through Hole	Temperature: -40 to 125°C	Dimensions mm: 47.91 x 22.80 x 7.21mm	Dimensions in.: 1.886 x 0.898 x 0.284in	Package: 4623 ChiP
Part Number: DCM4623TD2K17E0M00	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 15.0 (9.0 - 16.5)	Power (W): 500.0	Control Interface: Analog	Optimized for: Array	Mounting: Through Hole	Temperature: -55 to 125°C	Dimensions mm: 47.91 x 22.80 x 7.21mm	Dimensions in.: 1.886 x 0.898 x 0.284in	Package: 4623 ChiP
Part Number: DCM4623TD2K17E0T00	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 15.0 (9.0 - 16.5)	Power (W): 500.0	Control Interface: Analog	Optimized for: Array	Mounting: Through Hole	Temperature: -40 to 125°C	Dimensions mm: 47.91 x 22.80 x 7.21mm	Dimensions in.: 1.886 x 0.898 x 0.284in	Package: 4623 ChiP
Part Number: DCM3714VD2K26E0T01	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 24.0 (14.4 - 26.4)	Power (W): 500.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Chassis Mount	Temperature: -40 to 125°C	Dimensions mm: 95.10 x 35.50 x 9.40mm	Dimensions in.: 3.750 x 1.400 x 0.370in	Package: 3714 VIA
Part Number: DCM3714BD2K26E0C05	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 24.0 (14.4 - 26.4)	Power (W): 500.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Short Pin	Temperature: -20 to 125°C	Dimensions mm: 95.10 x 35.50 x 9.40mm	Dimensions in.: 3.750 x 1.400 x 0.370in	Package: 3714 VIA
Part Number: DCM3714BD2K26E0M09	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 24.0 (14.4 - 26.4)	Power (W): 500.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Long Pin	Temperature: -55 to 125°C	Dimensions mm: 95.10 x 35.50 x 9.40mm	Dimensions in.: 3.750 x 1.400 x 0.370in	Package: 3714 VIA
Part Number: DCM3714BD2K26E0M05	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 24.0 (14.4 - 26.4)	Power (W): 500.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Short Pin	Temperature: -55 to 125°C	Dimensions mm: 95.10 x 35.50 x 9.40mm	Dimensions in.: 3.750 x 1.400 x 0.370in	Package: 3714 VIA
Part Number: DCM3714VD2K26E0C01	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 24.0 (14.4 - 26.4)	Power (W): 500.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Chassis Mount	Temperature: -20 to 125°C	Dimensions mm: 95.10 x 35.50 x 9.40mm	Dimensions in.: 3.750 x 1.400 x 0.370in	Package: 3714 VIA
Part Number: DCM3714BD2K26E0T09	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 24.0 (14.4 - 26.4)	Power (W): 500.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Long Pin	Temperature: -40 to 125°C	Dimensions mm: 95.10 x 35.50 x 9.40mm	Dimensions in.: 3.750 x 1.400 x 0.370in	Package: 3714 VIA
Part Number: DCM3714BD2K26E0T05	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 24.0 (14.4 - 26.4)	Power (W): 500.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Short Pin	Temperature: -40 to 125°C	Dimensions mm: 95.10 x 35.50 x 9.40mm	Dimensions in.: 3.750 x 1.400 x 0.370in	Package: 3714 VIA
Part Number: DCM3714BD2K26E0C09	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 24.0 (14.4 - 26.4)	Power (W): 500.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Long Pin	Temperature: -20 to 125°C	Dimensions mm: 95.10 x 35.50 x 9.40mm	Dimensions in.: 3.750 x 1.400 x 0.370in	Package: 3714 VIA
Part Number: DCM3714VD2K26E0M01	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 24.0 (14.4 - 26.4)	Power (W): 500.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Chassis Mount	Temperature: -55 to 125°C	Dimensions mm: 95.10 x 35.50 x 9.40mm	Dimensions in.: 3.750 x 1.400 x 0.370in	Package: 3714 VIA
Part Number: DCM4623TD2K26E0M70	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 24.0 (14.4 - 26.4)	Power (W): 500.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Through Hole	Temperature: -55 to 125°C	Dimensions mm: 47.91 x 22.80 x 7.21mm	Dimensions in.: 1.886 x 0.898 x 0.284in	Package: 4623 ChiP
Part Number: DCM4623TD2K26E0T70	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 24.0 (14.4 - 26.4)	Power (W): 500.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Through Hole	Temperature: -40 to 125°C	Dimensions mm: 47.91 x 22.80 x 7.21mm	Dimensions in.: 1.886 x 0.898 x 0.284in	Package: 4623 ChiP
Part Number: DCM4623TD2K26E0T00	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 24.0 (14.4 - 26.4)	Power (W): 500.0	Control Interface: Analog	Optimized for: Array	Mounting: Through Hole	Temperature: -40 to 125°C	Dimensions mm: 47.91 x 22.80 x 7.21mm	Dimensions in.: 1.886 x 0.898 x 0.284in	Package: 4623 ChiP
Part Number: DCM4623TD2K26E0M00	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 24.0 (14.4 - 26.4)	Power (W): 500.0	Control Interface: Analog	Optimized for: Array	Mounting: Through Hole	Temperature: -55 to 125°C	Dimensions mm: 47.91 x 22.80 x 7.21mm	Dimensions in.: 1.886 x 0.898 x 0.284in	Package: 4623 ChiP
Part Number: DCM3714BD2K31E0C05	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 28.0 (16.8 - 30.8)	Power (W): 500.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Short Pin	Temperature: -20 to 125°C	Dimensions mm: 95.10 x 35.50 x 9.40mm	Dimensions in.: 3.750 x 1.400 x 0.370in	Package: 3714 VIA
Part Number: DCM3714BD2K31E0C09	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 28.0 (16.8 - 30.8)	Power (W): 500.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Long Pin	Temperature: -20 to 125°C	Dimensions mm: 95.10 x 35.50 x 9.40mm	Dimensions in.: 3.750 x 1.400 x 0.370in	Package: 3714 VIA
Part Number: DCM3714BD2K31E0M05	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 28.0 (16.8 - 30.8)	Power (W): 500.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Short Pin	Temperature: -55 to 125°C	Dimensions mm: 95.10 x 35.50 x 9.40mm	Dimensions in.: 3.750 x 1.400 x 0.370in	Package: 3714 VIA
Part Number: DCM3714BD2K31E0T05	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 28.0 (16.8 - 30.8)	Power (W): 500.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Short Pin	Temperature: -40 to 125°C	Dimensions mm: 95.10 x 35.50 x 9.40mm	Dimensions in.: 3.750 x 1.400 x 0.370in	Package: 3714 VIA
Part Number: DCM3714BD2K31E0T09	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 28.0 (16.8 - 30.8)	Power (W): 500.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Long Pin	Temperature: -40 to 125°C	Dimensions mm: 95.10 x 35.50 x 9.40mm	Dimensions in.: 3.750 x 1.400 x 0.370in	Package: 3714 VIA
Part Number: DCM3714VD2K31E0T01	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 28.0 (16.8 - 30.8)	Power (W): 500.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Chassis Mount	Temperature: -40 to 125°C	Dimensions mm: 95.10 x 35.50 x 9.40mm	Dimensions in.: 3.750 x 1.400 x 0.370in	Package: 3714 VIA
Part Number: DCM3714VD2K31E0C01	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 28.0 (16.8 - 30.8)	Power (W): 500.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Chassis Mount	Temperature: -20 to 125°C	Dimensions mm: 95.10 x 35.50 x 9.40mm	Dimensions in.: 3.750 x 1.400 x 0.370in	Package: 3714 VIA
Part Number: DCM3714BD2K31E0M09	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 28.0 (16.8 - 30.8)	Power (W): 500.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Board Mount Long Pin	Temperature: -55 to 125°C	Dimensions mm: 95.10 x 35.50 x 9.40mm	Dimensions in.: 3.750 x 1.400 x 0.370in	Package: 3714 VIA
Part Number: DCM3714VD2K31E0M01	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 28.0 (16.8 - 30.8)	Power (W): 500.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Chassis Mount	Temperature: -55 to 125°C	Dimensions mm: 95.10 x 35.50 x 9.40mm	Dimensions in.: 3.750 x 1.400 x 0.370in	Package: 3714 VIA
Part Number: DCM4623TD2K31E0T0A	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 28.0 (16.8 - 30.8)	Power (W): 500.0	Control Interface: Analog	Optimized for: Array	Mounting: Through Hole	Temperature: -40 to 125°C	Dimensions mm: 47.91 x 22.80 x 7.21mm	Dimensions in.: 1.886 x 0.898 x 0.284in	Package: 4623 ChiP
Part Number: DCM4623TD2K31E0M70	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 28.0 (16.8 - 30.8)	Power (W): 500.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Through Hole	Temperature: -55 to 125°C	Dimensions mm: 47.91 x 22.80 x 7.21mm	Dimensions in.: 1.886 x 0.898 x 0.284in	Package: 4623 ChiP
Part Number: DCM4623TD2K31E0T70	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 28.0 (16.8 - 30.8)	Power (W): 500.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Through Hole	Temperature: -40 to 125°C	Dimensions mm: 47.91 x 22.80 x 7.21mm	Dimensions in.: 1.886 x 0.898 x 0.284in	Package: 4623 ChiP
Part Number: DCM4623TD2K31E0M00	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 28.0 (16.8 - 30.8)	Power (W): 500.0	Control Interface: Analog	Optimized for: Array	Mounting: Through Hole	Temperature: -55 to 125°C	Dimensions mm: 47.91 x 22.80 x 7.21mm	Dimensions in.: 1.886 x 0.898 x 0.284in	Package: 4623 ChiP
Part Number: DCM4623TD2K31E0T00	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 28.0 (16.8 - 30.8)	Power (W): 500.0	Control Interface: Analog	Optimized for: Array	Mounting: Through Hole	Temperature: -40 to 125°C	Dimensions mm: 47.91 x 22.80 x 7.21mm	Dimensions in.: 1.886 x 0.898 x 0.284in	Package: 4623 ChiP
Part Number: DCM4623TD2K53E0M70	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 48.0 (28.8 - 52.8)	Power (W): 500.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Through Hole	Temperature: -55 to 125°C	Dimensions mm: 47.91 x 22.80 x 7.21mm	Dimensions in.: 1.886 x 0.898 x 0.284in	Package: 4623 ChiP
Part Number: DCM4623TD2K53E0T70	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 48.0 (28.8 - 52.8)	Power (W): 500.0	Control Interface: Analog	Optimized for: Standalone	Mounting: Through Hole	Temperature: -40 to 125°C	Dimensions mm: 47.91 x 22.80 x 7.21mm	Dimensions in.: 1.886 x 0.898 x 0.284in	Package: 4623 ChiP
Part Number: DCM4623TD2K53E0M00	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 48.0 (28.8 - 52.8)	Power (W): 500.0	Control Interface: Analog	Optimized for: Array	Mounting: Through Hole	Temperature: -55 to 125°C	Dimensions mm: 47.91 x 22.80 x 7.21mm	Dimensions in.: 1.886 x 0.898 x 0.284in	Package: 4623 ChiP
Part Number: DCM4623TD2K53E0T00	Datasheet:	Input (V): 270.0 (160.0 - 420.0)	Output (V): 48.0 (28.8 - 52.8)	Power (W): 500.0	Control Interface: Analog	Optimized for: Array	Mounting: Through Hole	Temperature: -40 to 125°C	Dimensions mm: 47.91 x 22.80 x 7.21mm	Dimensions in.: 1.886 x 0.898 x 0.284in	Package: 4623 ChiP
Part Number: DCM5614VD0H36K3T02	Datasheet:	Input (V): 270.0 (180.0 - 400.0)	Output (V): 28.0 (22.0 - 36.0)	Power (W): 1300.0	Control Interface: PM Bus	Optimized for: Array	Mounting: Chassis Mount	Temperature: -40 to 125°C	Dimensions mm: 141.43 x 35.54 x 9.40mm	Dimensions in.: 5.570 x 1.400 x 0.370in	Package: 5614 VIA
Part Number: DCM5614BD0H36K3T06	Datasheet:	Input (V): 270.0 (180.0 - 400.0)	Output (V): 28.0 (22.0 - 36.0)	Power (W): 1300.0	Control Interface: PM Bus	Optimized for: Array	Mounting: Board Mount Short Pin	Temperature: -40 to 125°C	Dimensions mm: 141.43 x 35.54 x 9.40mm	Dimensions in.: 5.570 x 1.400 x 0.370in	Package: 5614 VIA
Part Number: DCM5614BD0H36K3T10	Datasheet:	Input (V): 270.0 (180.0 - 400.0)	Output (V): 28.0 (22.0 - 36.0)	Power (W): 1300.0	Control Interface: PM Bus	Optimized for: Array	Mounting: Board Mount Long Pin	Temperature: -40 to 125°C	Dimensions mm: 141.43 x 35.54 x 9.40mm	Dimensions in.: 5.570 x 1.400 x 0.370in	Package: 5614 VIA
Part Number: DCM5614VD0H36K3T01	Datasheet:	Input (V): 270.0 (180.0 - 400.0)	Output (V): 28.0 (22.0 - 36.0)	Power (W): 1300.0	Control Interface: Analog	Optimized for: Array	Mounting: Chassis Mount	Temperature: -40 to 125°C	Dimensions mm: 141.43 x 35.54 x 9.40mm	Dimensions in.: 5.570 x 1.400 x 0.370in	Package: 5614 VIA

Viewing

25 50 100

of ###

맨 위로

경기도 성남시 분당구 삼평동 624-5 판교 디지털 센터 A-501
대표전화 031-620-0071 Managed by SemiNet
