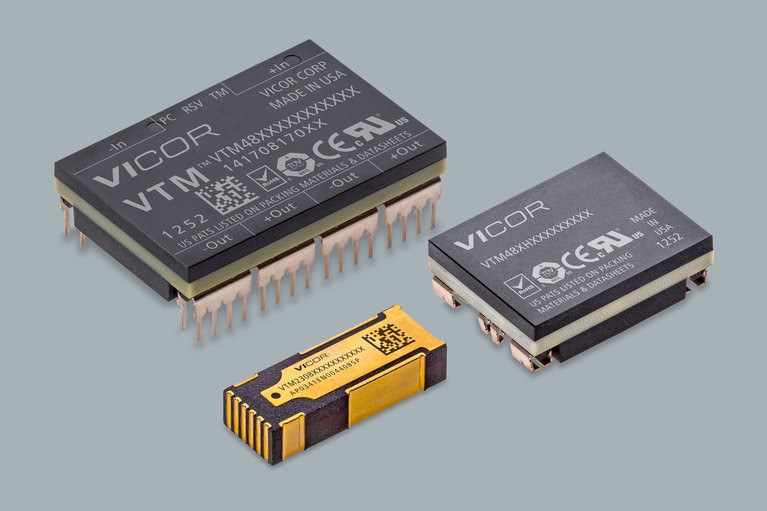

VTM™ 전류 배율기

계수화된 전력 전류 배율기

VTM은 고정 비율의 절연 또는 비절연 DC-DC 변압기 모듈 제품군으로 PoL(Point-of-Load) 전류 배율기라고도 한다. VTM은 조정된 기본 버스에서 작동하여 광범위한 절연 출력을 제공한다. 독점적인 멀티헤르츠 ZCS/ZVS 사인 진폭 컨버터™(SAC™) 위상은 까다로운 부하와 고밀도 요구사항이 있는 애플리케이션을 위해 입력 전압을 매우 효율적으로 낮은 전압으로 변환합니다.

FAMILY OVERVIEW

제품 목록

Image		Vin (V)	Vout (V)	Output Current (A)	K Factor	Mounting	Temperature	Dimensions	Dimensions	Package
Part Number: VTM48EF012T130C01	Datasheet:	Vin (V): 40 (26 - 55)	Vout (V): 1.0 (0.7 - 1.4)	Output Current (A): 130.0	K Factor: 1/40	Mounting: J-Lead	Temperature: -40 to +125°C	Dimensions mm: 32.5 x 22.0 x 6.73mm	Dimensions in.: 1.28 x 0.866 x 0.249in	Package: Full Chip
Part Number: VTM48EF040T050B00	Datasheet:	Vin (V): 48 (26 - 55)	Vout (V): 4.0 (2.2 - 4.6)	Output Current (A): 50.0	K Factor: 1/12	Mounting: J-Lead	Temperature: -40 to +125°C	Dimensions mm: 32.5 x 22.0 x 6.73mm	Dimensions in.: 1.28 x 0.866 x 0.249in	Package: Full Chip
Part Number: VTM48EF040T050B0R	Datasheet:	Vin (V): 48 (26 - 55)	Vout (V): 4.0 (2.2 - 4.6)	Output Current (A): 50.0	K Factor: 1/12	Mounting: J-Lead	Temperature: -40 to +125°C	Dimensions mm: 32.5 x 22.0 x 6.73mm	Dimensions in.: 1.28 x 0.866 x 0.249in	Package: Full Chip
Part Number: VTM48EF060T040A00	Datasheet:	Vin (V): 48 (26 - 55)	Vout (V): 6.0 (3.3 - 6.9)	Output Current (A): 40.0	K Factor: 1/8	Mounting: J-Lead	Temperature: -40 to +125°C	Dimensions mm: 32.5 x 22.0 x 6.73mm	Dimensions in.: 1.28 x 0.866 x 0.249in	Package: Full Chip
Part Number: VTM48EF060T046A00	Datasheet:	Vin (V): 48 (26 - 55)	Vout (V): 6.0 (3.3 - 6.9)	Output Current (A): 46.0	K Factor: 1/8	Mounting: J-Lead	Temperature: -40 to +125°C	Dimensions mm: 32.5 x 22.0 x 6.73mm	Dimensions in.: 1.28 x 0.866 x 0.249in	Package: Full Chip
Part Number: VTM48EF080T030A00	Datasheet:	Vin (V): 48 (26 - 55)	Vout (V): 8.0 (4.3 - 9.2)	Output Current (A): 30.0	K Factor: 1/6	Mounting: J-Lead	Temperature: -40 to +125°C	Dimensions mm: 32.5 x 22.0 x 6.73mm	Dimensions in.: 1.28 x 0.866 x 0.249in	Package: Full Chip
Part Number: VTM48EF096T025A00	Datasheet:	Vin (V): 48 (26 - 55)	Vout (V): 9.6 (5.2 - 11.0)	Output Current (A): 25.0	K Factor: 1/5	Mounting: J-Lead	Temperature: -40 to +125°C	Dimensions mm: 32.5 x 22.0 x 6.73mm	Dimensions in.: 1.28 x 0.866 x 0.249in	Package: Full Chip
Part Number: VTM48EF120T025A00	Datasheet:	Vin (V): 48 (26 - 55)	Vout (V): 12.0 (6.5 - 13.8)	Output Current (A): 25.0	K Factor: 1/4	Mounting: J-Lead	Temperature: -40 to +125°C	Dimensions mm: 32.5 x 22.0 x 6.73mm	Dimensions in.: 1.28 x 0.866 x 0.249in	Package: Full Chip
Part Number: VTM48EF120T025A0R	Datasheet:	Vin (V): 48 (26 - 55)	Vout (V): 12.0 (6.5 - 13.8)	Output Current (A): 25.0	K Factor: 1/4	Mounting: J-Lead	Temperature: -40 to +125°C	Dimensions mm: 32.5 x 22.0 x 6.73mm	Dimensions in.: 1.28 x 0.866 x 0.249in	Package: Full Chip
Part Number: VTM48EF160T015A00	Datasheet:	Vin (V): 48 (26 - 55)	Vout (V): 16.0 (8.7 - 18.3)	Output Current (A): 15.0	K Factor: 1/3	Mounting: J-Lead	Temperature: -40 to +125°C	Dimensions mm: 32.5 x 22.0 x 6.73mm	Dimensions in.: 1.28 x 0.866 x 0.249in	Package: Full Chip
Part Number: VTM48EF240T012A00	Datasheet:	Vin (V): 48 (26 - 55)	Vout (V): 24.0 (13.0 - 27.5)	Output Current (A): 12.5	K Factor: 1/2	Mounting: J-Lead	Temperature: -40 to +125°C	Dimensions mm: 32.5 x 22.0 x 6.73mm	Dimensions in.: 1.28 x 0.866 x 0.249in	Package: Full Chip
Part Number: VTM48EF320T009A00	Datasheet:	Vin (V): 48 (26 - 55)	Vout (V): 32.0 (17.3 - 36.7)	Output Current (A): 9.4	K Factor: 2/3	Mounting: J-Lead	Temperature: -40 to +125°C	Dimensions mm: 32.5 x 22.0 x 6.73mm	Dimensions in.: 1.28 x 0.866 x 0.249in	Package: Full Chip
Part Number: VTM48EF480T006A00	Datasheet:	Vin (V): 48 (26 - 55)	Vout (V): 48.0 (26.0 - 55.0)	Output Current (A): 6.3	K Factor: 1	Mounting: J-Lead	Temperature: -40 to +125°C	Dimensions mm: 32.5 x 22.0 x 6.73mm	Dimensions in.: 1.28 x 0.866 x 0.249in	Package: Full Chip
Part Number: VTM48EH040T025B00	Datasheet:	Vin (V): 42 (26 - 55)	Vout (V): 3.5 (2.2 - 4.6)	Output Current (A): 25.0	K Factor: 1/12	Mounting: J-Lead	Temperature: -40 to +125°C	Dimensions mm: 22.0 x 16.5 x 6.73mm	Dimensions in.: 0.65 x 0.866 x 0.249in	Package: Half Chip
Part Number: VTM48EH060M020A00	Datasheet:	Vin (V): 48 (26 - 55)	Vout (V): 6.0 (3.3 - 6.9)	Output Current (A): 20.0	K Factor: 1/8	Mounting: J-Lead	Temperature: -55 to +125°C	Dimensions mm: 22.0 x 16.5 x 6.73mm	Dimensions in.: 0.65 x 0.866 x 0.249in	Package: Half Chip
Part Number: VTM48EH060T020A00	Datasheet:	Vin (V): 48 (26 - 55)	Vout (V): 6.0 (3.2 - 6.9)	Output Current (A): 20.0	K Factor: 1/8	Mounting: J-Lead	Temperature: -40 to +125°C	Dimensions mm: 22.0 x 16.5 x 6.73mm	Dimensions in.: 0.65 x 0.866 x 0.249in	Package: Half Chip
Part Number: VTM48EH120M010B00	Datasheet:	Vin (V): 48 (26 - 55)	Vout (V): 12.0 (6.5 - 13.8)	Output Current (A): 10.0	K Factor: 1/4	Mounting: J-Lead	Temperature: -55 to +125°C	Dimensions mm: 22.0 x 16.5 x 6.73mm	Dimensions in.: 0.65 x 0.866 x 0.249in	Package: Half Chip
Part Number: VTM48EH120T010B00	Datasheet:	Vin (V): 48 (26 - 55)	Vout (V): 12.0 (6.5 - 13.8)	Output Current (A): 10.0	K Factor: 1/4	Mounting: J-Lead	Temperature: -40 to +125°C	Dimensions mm: 22.0 x 16.5 x 6.73mm	Dimensions in.: 0.65 x 0.866 x 0.249in	Package: Half Chip
Part Number: VTM48ET040T050B00	Datasheet:	Vin (V): 48 (26 - 55)	Vout (V): 4.0 (2.2 - 4.6)	Output Current (A): 50.0	K Factor: 1/12	Mounting: Through Hole	Temperature: -40 to +125°C	Dimensions mm: 32.5 x 22.0 x 6.73mm	Dimensions in.: 1.28 x 0.866 x 0.249in	Package: Full Chip
Part Number: VTM48ET040T050B0R	Datasheet:	Vin (V): 48 (26 - 55)	Vout (V): 4.0 (2.2 - 4.6)	Output Current (A): 50.0	K Factor: 1/12	Mounting: Through Hole	Temperature: -40 to +125°C	Dimensions mm: 32.5 x 22.0 x 6.73mm	Dimensions in.: 1.28 x 0.866 x 0.249in	Package: Full Chip
Part Number: VTM48ET060T040A00	Datasheet:	Vin (V): 48 (26 - 55)	Vout (V): 6.0 (3.3 - 6.9)	Output Current (A): 40.0	K Factor: 1/8	Mounting: Through Hole	Temperature: -40 to +125°C	Dimensions mm: 32.5 x 22.0 x 6.73mm	Dimensions in.: 1.28 x 0.866 x 0.249in	Package: Full Chip
Part Number: VTM48ET080T030A00	Datasheet:	Vin (V): 48 (26 - 55)	Vout (V): 8.0 (4.3 - 9.2)	Output Current (A): 30.0	K Factor: 1/6	Mounting: Through Hole	Temperature: -40 to +125°C	Dimensions mm: 32.5 x 22.0 x 6.73mm	Dimensions in.: 1.28 x 0.866 x 0.249in	Package: Full Chip
Part Number: VTM48ET096T025A00	Datasheet:	Vin (V): 48 (26 - 55)	Vout (V): 9.6 (5.2 - 11.0)	Output Current (A): 25.0	K Factor: 1/5	Mounting: Through Hole	Temperature: -40 to +125°C	Dimensions mm: 32.5 x 22.0 x 6.73mm	Dimensions in.: 1.28 x 0.866 x 0.249in	Package: Full Chip
Part Number: VTM48ET120T025A00	Datasheet:	Vin (V): 48 (26 - 55)	Vout (V): 12.0 (6.5 - 13.8)	Output Current (A): 25.0	K Factor: 1/4	Mounting: Through Hole	Temperature: -40 to +125°C	Dimensions mm: 32.5 x 22.0 x 6.73mm	Dimensions in.: 1.28 x 0.866 x 0.249in	Package: Full Chip
Part Number: VTM48ET120T025A0R	Datasheet:	Vin (V): 48 (26 - 55)	Vout (V): 12.0 (6.5 - 13.8)	Output Current (A): 25.0	K Factor: 1/4	Mounting: Through Hole	Temperature: -40 to +125°C	Dimensions mm: 32.5 x 22.0 x 6.73mm	Dimensions in.: 1.28 x 0.866 x 0.249in	Package: Full Chip
Part Number: VTM48ET160T015A00	Datasheet:	Vin (V): 48 (26 - 55)	Vout (V): 16.0 (8.7 - 18.3)	Output Current (A): 15.0	K Factor: 1/3	Mounting: Through Hole	Temperature: -40 to +125°C	Dimensions mm: 32.5 x 22.0 x 6.73mm	Dimensions in.: 1.28 x 0.866 x 0.249in	Package: Full Chip
Part Number: VTM48ET240T012A00	Datasheet:	Vin (V): 48 (26 - 55)	Vout (V): 24.0 (13.0 - 27.5)	Output Current (A): 12.5	K Factor: 1/2	Mounting: Through Hole	Temperature: -40 to +125°C	Dimensions mm: 32.5 x 22.0 x 6.73mm	Dimensions in.: 1.28 x 0.866 x 0.249in	Package: Full Chip
Part Number: VTM48ET320T009A00	Datasheet:	Vin (V): 48 (26 - 55)	Vout (V): 32.0 (17.3 - 36.7)	Output Current (A): 9.5	K Factor: 2/3	Mounting: Through Hole	Temperature: -40 to +125°C	Dimensions mm: 32.5 x 22.0 x 6.73mm	Dimensions in.: 1.28 x 0.866 x 0.249in	Package: Full Chip
Part Number: VTM48ET480T006A00	Datasheet:	Vin (V): 48 (26 - 55)	Vout (V): 48.0 (26.0 - 55.0)	Output Current (A): 6.25	K Factor: 1	Mounting: Through Hole	Temperature: -40 to +125°C	Dimensions mm: 32.5 x 22.0 x 6.73mm	Dimensions in.: 1.28 x 0.866 x 0.249in	Package: Full Chip
Part Number: VTM2308S60Z0825T00	Datasheet:	Vin (V): 40 (0 - 60)	Vout (V): 5.0 (0 - 7.5)	Output Current (A): 25.0	K Factor: 1/8	Mounting: Surface Mount	Temperature: -40 to +125°C	Dimensions mm: 22.83 x 8.52 x 4.90mm	Dimensions in.: 0.89 x 0.335 x 0.193in	Package: 2308
Part Number: VTM2308S60Z1513T00	Datasheet:	Vin (V): 48 (0 - 60)	Vout (V): 12.0 (0 - 15)	Output Current (A): 12.5	K Factor: 1/4	Mounting: Surface Mount	Temperature: -40 to +125°C	Dimensions mm: 22.83 x 8.52 x 4.90mm	Dimensions in.: 0.89 x 0.335 x 0.193in	Package: 2308
