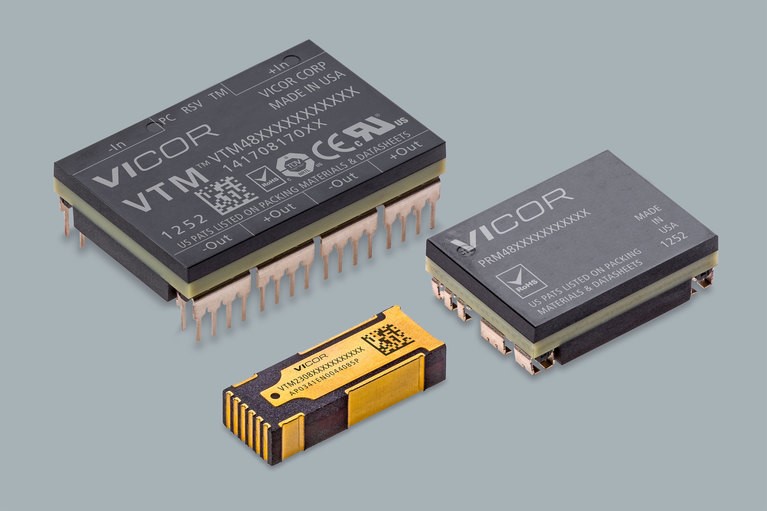

PRM™ 정류기와 VTM™ 전류 배율기

계수화된 전력 솔루션

PRM 및 VTM 솔루션은 고전력, 저전압, 절연 및 비절연 PoL 애플리케이션을 위해 Factorized Power Architecture™의 장점을 활용한다. Factorized Power Architecture™는 완전한 DC-DC 솔루션을 제공하기 위해 PRM(사전 조정 모듈) 또는 벅-부스트 레귤레이터 및 VTM(Voltage Transformation Modules) 또는 PoL에서 전류 배율기를 사용한다.

FAMILY OVERVIEW

제품 목록

Image		Vin (V)	Vout (V)	Power (W)	Output Current (A)	Temperature	VTM Compatibility	Dimensions	Dimensions	Features	Package
Part Number: PRM48AF480M400A00	Datasheet:	Vin (V): 48 (36 - 75)	Vout (V): 48 (20 - 55)	Power (W): 400	Output Current (A): 8.33	Temperature: -55 to +125°C	VTM Compatibility: Yes	Dimensions mm: 32.5 x 22.0 x 6.73mm	Dimensions in.: 1.28 x 0.866 x 0.249in	Features: Configurable	Package: Full Chip
Part Number: PRM48AF480T400A00	Datasheet:	Vin (V): 48 (36 - 75)	Vout (V): 48 (20 - 55)	Power (W): 400	Output Current (A): 8.33	Temperature: -40 to +125°C	VTM Compatibility: Yes	Dimensions mm: 32.5 x 22.0 x 6.73mm	Dimensions in.: 1.28 x 0.866 x 0.249in	Features: Configurable	Package: Full Chip
Part Number: PRM48AH480M200A00	Datasheet:	Vin (V): 48 (36 - 75)	Vout (V): 48 (20 - 55)	Power (W): 200	Output Current (A): 4.17	Temperature: -55 to +125°C	VTM Compatibility: Yes	Dimensions mm: 22.0 x 16.5 x 6.73mm	Dimensions in.: 0.87 x 0.650 x 0.265in	Features: Configurable	Package: Half Chip
Part Number: PRM48AH480T200A00	Datasheet:	Vin (V): 48 (36 - 75)	Vout (V): 48 (20 - 55)	Power (W): 200	Output Current (A): 4.17	Temperature: -40 to +125°C	VTM Compatibility: Yes	Dimensions mm: 22.0 x 16.5 x 6.73mm	Dimensions in.: 0.87 x 0.650 x 0.265in	Features: Configurable	Package: Half Chip
Part Number: PRM48AT480M400A00	Datasheet:	Vin (V): 48 (36 - 75)	Vout (V): 48 (20 - 55)	Power (W): 400	Output Current (A): 8.33	Temperature: -55 to +125°C	VTM Compatibility: Yes	Dimensions mm: 32.5 x 22.0 x 6.73mm	Dimensions in.: 1.28 x 0.866 x 0.249in	Features: Configurable	Package: Full Chip
Part Number: PRM48AT480T400A00	Datasheet:	Vin (V): 48 (36 - 75)	Vout (V): 48 (20 - 55)	Power (W): 400	Output Current (A): 8.33	Temperature: -40 to +125°C	VTM Compatibility: Yes	Dimensions mm: 32.5 x 22.0 x 6.73mm	Dimensions in.: 1.28 x 0.866 x 0.249in	Features: Configurable	Package: Full Chip
Part Number: PRM48BF480M500A00	Datasheet:	Vin (V): 48 (38 - 55)	Vout (V): 48 (20 - 55)	Power (W): 500	Output Current (A): 10.42	Temperature: -55 to +125°C	VTM Compatibility: Yes	Dimensions mm: 32.5 x 22.0 x 6.73mm	Dimensions in.: 1.28 x 0.866 x 0.249in	Features: Configurable	Package: Full Chip
Part Number: PRM48BF480M600A00	Datasheet:	Vin (V): 45 (38 - 55)	Vout (V): 48 (5 - 55)	Power (W): 600	Output Current (A): 12.50	Temperature: -55 to +125°C	VTM Compatibility: Yes	Dimensions mm: 32.5 x 22.0 x 6.73mm	Dimensions in.: 1.28 x 0.866 x 0.249in	Features: Remote Sense	Package: Full Chip
Part Number: PRM48BF480T400B00	Datasheet:	Vin (V): 45 (38 - 55)	Vout (V): 48 (5 - 55)	Power (W): 400	Output Current (A): 8.33	Temperature: -40 to +125°C	VTM Compatibility: Yes	Dimensions mm: 32.5 x 22.0 x 6.73mm	Dimensions in.: 1.28 x 0.866 x 0.249in	Features: Remote Sense	Package: Full Chip
Part Number: PRM48BF480T500A00	Datasheet:	Vin (V): 48 (38 - 55)	Vout (V): 48 (20 - 55)	Power (W): 500	Output Current (A): 10.42	Temperature: -40 to +125°C	VTM Compatibility: Yes	Dimensions mm: 32.5 x 22.0 x 6.73mm	Dimensions in.: 1.28 x 0.866 x 0.249in	Features: Configurable	Package: Full Chip
Part Number: PRM48BF480T600A00	Datasheet:	Vin (V): 45 (38 - 55)	Vout (V): 48 (5 - 55)	Power (W): 600	Output Current (A): 12.50	Temperature: -40 to +125°C	VTM Compatibility: Yes	Dimensions mm: 32.5 x 22.0 x 6.73mm	Dimensions in.: 1.28 x 0.866 x 0.249in	Features: Remote Sense	Package: Full Chip
Part Number: PRM48BH480M200B00	Datasheet:	Vin (V): 45 (38 - 55)	Vout (V): 48 (5 - 55)	Power (W): 200	Output Current (A): 4.17	Temperature: -55 to +125°C	VTM Compatibility: Yes	Dimensions mm: 22.0 x 16.5 x 6.73mm	Dimensions in.: 0.87 x 0.650 x 0.265in	Features: Remote Sense	Package: Half Chip
Part Number: PRM48BH480M250A00	Datasheet:	Vin (V): 48 (38 - 55)	Vout (V): 48 (20 - 55)	Power (W): 250	Output Current (A): 5.21	Temperature: -55 to +125°C	VTM Compatibility: Yes	Dimensions mm: 22.0 x 16.5 x 6.73mm	Dimensions in.: 0.87 x 0.650 x 0.265in	Features: Configurable	Package: Half Chip
Part Number: PRM48BH480T200B00	Datasheet:	Vin (V): 45 (38 - 55)	Vout (V): 48 (5 - 55)	Power (W): 200	Output Current (A): 4.17	Temperature: -40 to +125°C	VTM Compatibility: Yes	Dimensions mm: 22.0 x 16.5 x 6.73mm	Dimensions in.: 0.87 x 0.650 x 0.265in	Features: Remote Sense	Package: Half Chip
Part Number: PRM48BH480T250A00	Datasheet:	Vin (V): 48 (38 - 55)	Vout (V): 48 (20 - 55)	Power (W): 250	Output Current (A): 5.21	Temperature: -40 to +125°C	VTM Compatibility: Yes	Dimensions mm: 22.0 x 16.5 x 6.73mm	Dimensions in.: 0.87 x 0.650 x 0.265in	Features: Configurable	Package: Half Chip
Part Number: PRM48BT480M600A00	Datasheet:	Vin (V): 45 (38 - 55)	Vout (V): 48 (5 - 55)	Power (W): 600	Output Current (A): 12.50	Temperature: -55 to +125°C	VTM Compatibility: Yes	Dimensions mm: 32.5 x 22.0 x 6.73mm	Dimensions in.: 1.28 x 0.866 x 0.249in	Features: Remote Sense	Package: Full Chip
Part Number: PRM48BT480T400B00	Datasheet:	Vin (V): 45 (38 - 55)	Vout (V): 48 (5 - 55)	Power (W): 400	Output Current (A): 8.33	Temperature: -40 to +125°C	VTM Compatibility: Yes	Dimensions mm: 32.5 x 22.0 x 6.73mm	Dimensions in.: 1.28 x 0.866 x 0.249in	Features: Remote Sense	Package: Full Chip
Part Number: PRM48BT480T500A00	Datasheet:	Vin (V): 48 (38 - 55)	Vout (V): 48 (20 - 55)	Power (W): 500	Output Current (A): 10.42	Temperature: -40 to +125°C	VTM Compatibility: Yes	Dimensions mm: 32.5 x 22.0 x 6.73mm	Dimensions in.: 1.28 x 0.866 x 0.249in	Features: Configurable	Package: Full Chip
Part Number: PRM48BT480T600A00	Datasheet:	Vin (V): 45 (38 - 55)	Vout (V): 48 (5 - 55)	Power (W): 600	Output Current (A): 12.50	Temperature: -40 to +125°C	VTM Compatibility: Yes	Dimensions mm: 32.5 x 22.0 x 6.73mm	Dimensions in.: 1.28 x 0.866 x 0.249in	Features: Remote Sense	Package: Full Chip
Part Number: PRM48JF480M500A00	Datasheet:	Vin (V): 48 (45 - 55)	Vout (V): 48 (20 - 55)	Power (W): 500	Output Current (A): 10.42	Temperature: -55 to +125°C	VTM Compatibility: Yes	Dimensions mm: 32.5 x 22.0 x 6.73mm	Dimensions in.: 1.28 x 0.866 x 0.249in	Features: Configurable	Package: Full Chip
Part Number: PRM48JF480T500A00	Datasheet:	Vin (V): 48 (45 - 55)	Vout (V): 48 (20 - 55)	Power (W): 500	Output Current (A): 10.42	Temperature: -40 to +125°C	VTM Compatibility: Yes	Dimensions mm: 32.5 x 22.0 x 6.73mm	Dimensions in.: 1.28 x 0.866 x 0.249in	Features: Configurable	Package: Full Chip
Part Number: PRM48JH480M250A00	Datasheet:	Vin (V): 48 (45 - 55)	Vout (V): 48 (20 - 55)	Power (W): 250	Output Current (A): 5.21	Temperature: -55 to +125°C	VTM Compatibility: Yes	Dimensions mm: 22.0 x 16.5 x 6.73mm	Dimensions in.: 0.87 x 0.650 x 0.265in	Features: Configurable	Package: Half Chip
Part Number: PRM48JH480T250A00	Datasheet:	Vin (V): 48 (45 - 55)	Vout (V): 48 (20 - 55)	Power (W): 250	Output Current (A): 5.21	Temperature: -40 to +125°C	VTM Compatibility: Yes	Dimensions mm: 22.0 x 16.5 x 6.73mm	Dimensions in.: 0.87 x 0.650 x 0.265in	Features: Configurable	Package: Half Chip
Part Number: PRM48JH480T250A02	Datasheet:	Vin (V): 48 (45 - 55)	Vout (V): 53 (20 - 55)	Power (W): 250	Output Current (A): 4.72	Temperature: -40 to +125°C	VTM Compatibility: Yes	Dimensions mm: 22.0 x 16.5 x 6.73mm	Dimensions in.: 0.87 x 0.650 x 0.265in	Features: Configurable	Package: Half Chip
Part Number: PRM48JT480M500A00	Datasheet:	Vin (V): 48 (45 - 55)	Vout (V): 48 (20 - 55)	Power (W): 500	Output Current (A): 10.42	Temperature: -55 to +125°C	VTM Compatibility: Yes	Dimensions mm: 32.5 x 22.0 x 6.73mm	Dimensions in.: 1.28 x 0.866 x 0.249in	Features: Configurable	Package: Full Chip
Part Number: PRM48JT480T500A00	Datasheet:	Vin (V): 48 (45 - 55)	Vout (V): 48 (20 - 55)	Power (W): 500	Output Current (A): 10.42	Temperature: -40 to +125°C	VTM Compatibility: Yes	Dimensions mm: 32.5 x 22.0 x 6.73mm	Dimensions in.: 1.28 x 0.866 x 0.249in	Features: Configurable	Package: Full Chip
Part Number: PRM2313S60E54H0T00	Datasheet:	Vin (V): 54 (38 - 60)	Vout (V): 48 (30 - 54)	Power (W): 800	Output Current (A): 16.60	Temperature: -40 to +125°C	VTM Compatibility: No	Dimensions mm: 22.8 x 13.8 x 7.41mm	Dimensions in.: 0.89 x 0.544 x 0.292in	Features: None	Package: 2313 SM Chip
