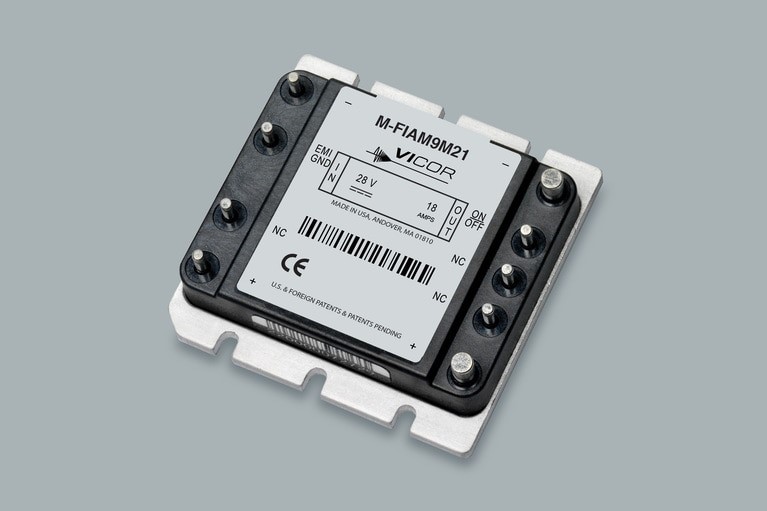

MIL-COTS M-FIAM™ 필터 입력 감쇠기 모듈
Maxi, Mini, Micro용
견고한 입력 필터 모듈
견고한 입력 필터 모듈
M-FIAM은 EMI 필터링 및 과도 보호 기능을 제공하는 DC 프런트 엔드 모듈이다. M-FIAM 제품 라인을 통해 설계자는 Vicor 24, 28 또는 300VIN Maxi, Mini, Micro DC-DC 컨버터 또는 28VIN MIL-COTS VI 칩 모듈을 사용하여 MIL-STD-461E 및 입력 과도 서지에 따른 전도 방출/전도 민감도를 충족할 수 있다. MIL-STD-704 또는 MIL-STD-1275에 따라 또한 MVA-FIAM5B 및 MVA-FIAM9는 M-FIAM5B 또는 M-FIAM9를 사용하는 설계자에게 편리한 입력 및 출력 커넥터로 냉각판 장착 기능을 제공한다.
[M-FIAM3 data sheet]
[M-FIAM5B data sheet]
[M-FIAM7 data sheet]
[M-FIAM7B data sheet]
[M-FIAM9 data sheet]
[MVA-FIAM5B data sheet]
[MVA-FIAM9 data sheet]
[M-FIAM3 data sheet]
[M-FIAM5B data sheet]
[M-FIAM7 data sheet]
[M-FIAM7B data sheet]
[M-FIAM9 data sheet]
[MVA-FIAM5B data sheet]
[MVA-FIAM9 data sheet]
제품 목록
0 Products
| Part Number | Input (V) | Output (A) | Transient Compliance | Module Compatibility | Pin Style | Temperature | Baseplate | Dimensions | Add to cart / view details | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M-FIAM3H11
|
 |
Part Number: M-FIAM3H11 |
:
 |
Input (V):
180 – 375
|
Output (A):
3
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
300 Vin Maxi, Mini, Micro
|
Pin Style:
Short Tin/Lead
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM3H22
|
|
Part Number: M-FIAM3H22 |
:
|
Input (V):
180 – 375
|
Output (A):
3
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
300 Vin Maxi, Mini, Micro
|
Pin Style:
Long Tin/Lead
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM3H22
|
|
Part Number: M-FIAM3H22 |
:
|
Input (V):
180 – 375
|
Output (A):
3
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
300 Vin Maxi, Mini, Micro
|
Pin Style:
Long Tin/Lead
|
Temperature:
-40 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM3H23
|
|
Part Number: M-FIAM3H23 |
:
|
Input (V):
180 – 375
|
Output (A):
3
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
300 Vin MIL-COTS VI Chips
|
Pin Style:
Long Tin/Lead
|
Temperature:
-40 to 100°C
|
Baseplate:
Through hole
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM3HG1
|
|
Part Number: M-FIAM3HG1 |
:
|
Input (V):
180 – 375
|
Output (A):
3
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
300 Vin Maxi, Mini, Micro
|
Pin Style:
Long RoHS Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM3HG2
|
|
Part Number: M-FIAM3HG2 |
:
|
Input (V):
180 – 375
|
Output (A):
3
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
300 Vin Maxi, Mini, Micro
|
Pin Style:
Long RoHS Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM3HN1
|
|
Part Number: M-FIAM3HN1 |
:
|
Input (V):
180 – 375
|
Output (A):
3
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
300 Vin Maxi, Mini, Micro
|
Pin Style:
Long Modumate Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM3HN2
|
|
Part Number: M-FIAM3HN2 |
:
|
Input (V):
180 – 375
|
Output (A):
3
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
300 Vin Maxi, Mini, Micro
|
Pin Style:
Long Modumate Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM3HN3
|
|
Part Number: M-FIAM3HN3 |
:
|
Input (V):
180 – 375
|
Output (A):
3
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
300 Vin Maxi, Mini, Micro
|
Pin Style:
Long Modumate Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Through hole
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM3HS1
|
|
Part Number: M-FIAM3HS1 |
:
|
Input (V):
180 – 375
|
Output (A):
3
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
300 Vin Maxi, Mini, Micro
|
Pin Style:
Short Modumate Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM3HS3
|
|
Part Number: M-FIAM3HS3 |
:
|
Input (V):
180 – 375
|
Output (A):
3
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
300 Vin Maxi, Mini, Micro
|
Pin Style:
Short Modumate Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Through hole
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM3M11
|
|
Part Number: M-FIAM3M11 |
:
|
Input (V):
180 – 375
|
Output (A):
3
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
300 Vin Maxi, Mini, Micro
|
Pin Style:
Short Tin/Lead
|
Temperature:
-55 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM3M11
|
|
Part Number: M-FIAM3M11 |
:
|
Input (V):
180 – 375
|
Output (A):
3
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
300 Vin Maxi, Mini, Micro
|
Pin Style:
Short Tin/Lead
|
Temperature:
-55 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM3M21
|
|
Part Number: M-FIAM3M21 |
:
|
Input (V):
180 – 375
|
Output (A):
3
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
300 Vin Maxi, Mini, Micro
|
Pin Style:
Long Tin/Lead
|
Temperature:
-55 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM3M22
|
|
Part Number: M-FIAM3M22 |
:
|
Input (V):
180 – 375
|
Output (A):
3
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
300 Vin Maxi, Mini, Micro
|
Pin Style:
Long Tin/Lead
|
Temperature:
-55 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM3MG1
|
|
Part Number: M-FIAM3MG1 |
:
|
Input (V):
180 – 375
|
Output (A):
3
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
300 Vin Maxi, Mini, Micro
|
Pin Style:
Long RoHS Gold
|
Temperature:
-55 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM3MG3
|
|
Part Number: M-FIAM3MG3 |
:
|
Input (V):
180 – 375
|
Output (A):
3
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
300 Vin Maxi, Mini, Micro
|
Pin Style:
Long RoHS Gold
|
Temperature:
-55 to 100°C
|
Baseplate:
Through hole
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM3MN1
|
|
Part Number: M-FIAM3MN1 |
:
|
Input (V):
180 – 375
|
Output (A):
3
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
300 Vin Maxi, Mini, Micro
|
Pin Style:
Long Modumate Gold
|
Temperature:
-55 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM3MN2
|
|
Part Number: M-FIAM3MN2 |
:
|
Input (V):
180 – 375
|
Output (A):
3
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
300 Vin Maxi, Mini, Micro
|
Pin Style:
Long Modumate Gold
|
Temperature:
-55 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM3MN3
|
|
Part Number: M-FIAM3MN3 |
:
|
Input (V):
180 – 375
|
Output (A):
3
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
300 Vin Maxi, Mini, Micro
|
Pin Style:
Long Modumate Gold
|
Temperature:
-55 to 100°C
|
Baseplate:
Through hole
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM3MS1
|
|
Part Number: M-FIAM3MS1 |
:
|
Input (V):
180 – 375
|
Output (A):
3
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
300 Vin Maxi, Mini, Micro
|
Pin Style:
Short Modumate Gold
|
Temperature:
-55 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM5BH11
|
|
Part Number: M-FIAM5BH11 |
:
|
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin Maxi, Mini, Micro
|
Pin Style:
Short Tin/Lead
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM5BH12
|
|
Part Number: M-FIAM5BH12 |
:
|
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin Maxi, Mini, Micro
|
Pin Style:
Short Tin/Lead
|
Temperature:
-40 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM5BH13
|
|
Part Number: M-FIAM5BH13 |
:
|
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin Maxi, Mini, Micro
|
Pin Style:
Short Tin/Lead
|
Temperature:
-40 to 100°C
|
Baseplate:
Through hole
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM5BH21
|
|
Part Number: M-FIAM5BH21 |
:
|
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin Maxi, Mini, Micro
|
Pin Style:
Long Tin/Lead
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM5BH22
|
|
Part Number: M-FIAM5BH22 |
:
|
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin Maxi, Mini, Micro
|
Pin Style:
Long Tin/Lead
|
Temperature:
-40 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM5BHG1
|
|
Part Number: M-FIAM5BHG1 |
:
|
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin Maxi, Mini, Micro
|
Pin Style:
Long RoHS Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM5BH23
|
|
Part Number: M-FIAM5BH23 |
:
|
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin Maxi, Mini, Micro
|
Pin Style:
Long RoHS Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM5BHG2
|
|
Part Number: M-FIAM5BHG2 |
:
|
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin Maxi, Mini, Micro
|
Pin Style:
Long RoHS Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM5BHK2
|
|
Part Number: M-FIAM5BHK2 |
:
|
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin Maxi, Mini, Micro
|
Pin Style:
Extra Long RoHS Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM5BHN1
|
|
Part Number: M-FIAM5BHN1 |
:
|
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin Maxi, Mini, Micro
|
Pin Style:
Long Modumate Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM5BHN2
|
|
Part Number: M-FIAM5BHN2 |
:
|
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin Maxi, Mini, Micro
|
Pin Style:
Long Modumate Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM5BHN3
|
|
Part Number: M-FIAM5BHN3 |
:
|
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin Maxi, Mini, Micro
|
Pin Style:
Long Modumate Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Through hole
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM5BHS1
|
|
Part Number: M-FIAM5BHS1 |
:
|
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin Maxi, Mini, Micro
|
Pin Style:
Short Modumate Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM5BHS3
|
|
Part Number: M-FIAM5BHS3 |
:
|
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin Maxi, Mini, Micro
|
Pin Style:
Short Modumate Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Through hole
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM5BM11
|
|
Part Number: M-FIAM5BM11 |
:
|
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin Maxi, Mini, Micro
|
Pin Style:
Short Tin/Lead
|
Temperature:
-55 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM5BM12
|
|
Part Number: M-FIAM5BM12 |
:
|
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin Maxi, Mini, Micro
|
Pin Style:
Short Tin/Lead
|
Temperature:
-55 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM5BM21
|
|
Part Number: M-FIAM5BM21 |
:
|
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin Maxi, Mini, Micro
|
Pin Style:
Long Tin/Lead
|
Temperature:
-55 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM5BM21-01
|
|
Part Number: M-FIAM5BM21-01 |
:
|
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin Maxi, Mini, Micro
|
Pin Style:
Long Tin/Lead
|
Temperature:
-55 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM5BM22
|
|
Part Number: M-FIAM5BM22 |
:
|
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin Maxi, Mini, Micro
|
Pin Style:
Long Tin/Lead
|
Temperature:
-55 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM5BM23
|
|
Part Number: M-FIAM5BM23 |
:
|
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin Maxi, Mini, Micro
|
Pin Style:
Long Tin/Lead
|
Temperature:
-55 to 100°C
|
Baseplate:
Through hole
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM5BMF1
|
|
Part Number: M-FIAM5BMF1 |
:
|
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin Maxi, Mini, Micro
|
Pin Style:
Short RoHS Gold
|
Temperature:
-55 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM5BMG1
|
|
Part Number: M-FIAM5BMG1 |
:
|
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin Maxi, Mini, Micro
|
Pin Style:
Long RoHS Gold
|
Temperature:
-55 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM5BMN1
|
|
Part Number: M-FIAM5BMN1 |
:
|
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin Maxi, Mini, Micro
|
Pin Style:
Long Modumate Gold
|
Temperature:
-55 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM5BMN2
|
|
Part Number: M-FIAM5BMN2 |
:
|
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin Maxi, Mini, Micro
|
Pin Style:
Long Modumate Gold
|
Temperature:
-55 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM5BMN3
|
|
Part Number: M-FIAM5BMN3 |
:
|
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin Maxi, Mini, Micro
|
Pin Style:
Long Modumate Gold
|
Temperature:
-55 to 100°C
|
Baseplate:
Through hole
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM7BH11
|
|
Part Number: M-FIAM7BH11 |
:
|
Input (V):
14 – 50
|
Output (A):
25
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D, DO-160E
|
Module Compatibility:
28 Vin MIL-COTS VI Chips
|
Pin Style:
Short Tin/Lead
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM7BH12
|
|
Part Number: M-FIAM7BH12 |
:
|
Input (V):
14 – 50
|
Output (A):
25
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D, DO-160E
|
Module Compatibility:
28 Vin MIL-COTS VI Chips
|
Pin Style:
Short Tin/Lead
|
Temperature:
-40 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM7BH21
|
|
Part Number: M-FIAM7BH21 |
:
|
Input (V):
14 – 50
|
Output (A):
25
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D, DO-160E
|
Module Compatibility:
28 Vin MIL-COTS VI Chips
|
Pin Style:
Long Tin/Lead
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM7BHN2
|
|
Part Number: M-FIAM7BHN2 |
:
|
Input (V):
14 – 50
|
Output (A):
25
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D, DO-160E
|
Module Compatibility:
28 Vin MIL-COTS VI Chips
|
Pin Style:
Long Modumate Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM7BM11
|
|
Part Number: M-FIAM7BM11 |
:
|
Input (V):
14 – 50
|
Output (A):
25
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D, DO-160E
|
Module Compatibility:
28 Vin MIL-COTS VI Chips
|
Pin Style:
Short Tin/Lead
|
Temperature:
-55 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM7BHS1
|
|
Part Number: M-FIAM7BHS1 |
:
|
Input (V):
14 – 50
|
Output (A):
25
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D, DO-160E
|
Module Compatibility:
28 Vin MIL-COTS VI Chips
|
Pin Style:
Short Modumate Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM7BM21
|
|
Part Number: M-FIAM7BM21 |
:
|
Input (V):
14 – 50
|
Output (A):
25
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D, DO-160E
|
Module Compatibility:
28 Vin MIL-COTS VI Chips
|
Pin Style:
Long Tin/Lead
|
Temperature:
-55 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM7BM22
|
|
Part Number: M-FIAM7BM22 |
:
|
Input (V):
14 – 50
|
Output (A):
25
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D, DO-160E
|
Module Compatibility:
28 Vin MIL-COTS VI Chips
|
Pin Style:
Long Tin/Lead
|
Temperature:
-55 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM7BM23
|
|
Part Number: M-FIAM7BM23 |
:
|
Input (V):
14 – 50
|
Output (A):
25
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D, DO-160E
|
Module Compatibility:
28 Vin MIL-COTS VI Chips
|
Pin Style:
Long Tin/Lead
|
Temperature:
-55 to 100°C
|
Baseplate:
Through hole
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM7BMG1
|
|
Part Number: M-FIAM7BMG1 |
:
|
Input (V):
14 – 50
|
Output (A):
25
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D, DO-160E
|
Module Compatibility:
28 Vin MIL-COTS VI Chips
|
Pin Style:
Long RoHS Gold
|
Temperature:
-55 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM7BMG3
|
|
Part Number: M-FIAM7BMG3 |
:
|
Input (V):
14 – 50
|
Output (A):
25
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D, DO-160E
|
Module Compatibility:
28 Vin MIL-COTS VI Chips
|
Pin Style:
Long RoHS Gold
|
Temperature:
-55 to 100°C
|
Baseplate:
Through hole
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM7BMN1
|
|
Part Number: M-FIAM7BMN1 |
:
|
Input (V):
14 – 50
|
Output (A):
25
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D, DO-160E
|
Module Compatibility:
28 Vin MIL-COTS VI Chips
|
Pin Style:
Long Modumate Gold
|
Temperature:
-55 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM7BMN3
|
|
Part Number: M-FIAM7BMN3 |
:
|
Input (V):
14 – 50
|
Output (A):
25
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D, DO-160E
|
Module Compatibility:
28 Vin MIL-COTS VI Chips
|
Pin Style:
Long Modumate Gold
|
Temperature:
-55 to 100°C
|
Baseplate:
Through hole
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM9H11
|
|
Part Number: M-FIAM9H11 |
:
|
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Short Tin/Lead
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM9H12
|
|
Part Number: M-FIAM9H12 |
:
|
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Short Tin/Lead
|
Temperature:
-40 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM9H13
|
|
Part Number: M-FIAM9H13 |
:
|
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Short Tin/Lead
|
Temperature:
-40 to 100°C
|
Baseplate:
Through hole
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM9H21
|
|
Part Number: M-FIAM9H21 |
:
|
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Long Tin/Lead
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM9H22
|
|
Part Number: M-FIAM9H22 |
:
|
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Long Tin/Lead
|
Temperature:
-40 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM9H23
|
|
Part Number: M-FIAM9H23 |
:
|
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Long Tin/Lead
|
Temperature:
-40 to 100°C
|
Baseplate:
Through hole
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM9HF1
|
|
Part Number: M-FIAM9HF1 |
:
|
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Short RoHS Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM9HF2
|
|
Part Number: M-FIAM9HF2 |
:
|
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Short RoHS Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM9HG1
|
|
Part Number: M-FIAM9HG1 |
:
|
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Long RoHS Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM9HG2
|
|
Part Number: M-FIAM9HG2 |
:
|
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Long RoHS Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM9HG3
|
|
Part Number: M-FIAM9HG3 |
:
|
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Long RoHS Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Through hole
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM9HK1
|
|
Part Number: M-FIAM9HK1 |
:
|
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Extra Long RoHS Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM9HK3
|
|
Part Number: M-FIAM9HK3 |
:
|
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Extra Long RoHS Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Through hole
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM9HN1
|
|
Part Number: M-FIAM9HN1 |
:
|
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Long Modumate Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM9HN2
|
|
Part Number: M-FIAM9HN2 |
:
|
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Long Modumate Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM9HN3
|
|
Part Number: M-FIAM9HN3 |
:
|
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Long Modumate Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Through hole
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM9HS1
|
|
Part Number: M-FIAM9HS1 |
:
|
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Short Modumate Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM9M11
|
|
Part Number: M-FIAM9M11 |
:
|
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Short Tin/Lead
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM9M12
|
|
Part Number: M-FIAM9M12 |
:
|
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Short Tin/Lead
|
Temperature:
-40 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM9M21
|
|
Part Number: M-FIAM9M21 |
:
|
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Long Tin/Lead
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM9M21-01
|
|
Part Number: M-FIAM9M21-01 |
:
|
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Long Tin/Lead
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM9M22
|
|
Part Number: M-FIAM9M22 |
:
|
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Long Tin/Lead
|
Temperature:
-40 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM9M23
|
|
Part Number: M-FIAM9M23 |
:
|
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Long Tin/Lead
|
Temperature:
-40 to 100°C
|
Baseplate:
Through hole
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM9MG1
|
|
Part Number: M-FIAM9MG1 |
:
|
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Long RoHS Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM9MG2
|
|
Part Number: M-FIAM9MG2 |
:
|
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Long RoHS Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM9MG3
|
|
Part Number: M-FIAM9MG3 |
:
|
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Long RoHS Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Through hole
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM9MK1
|
|
Part Number: M-FIAM9MK1 |
:
|
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Extra Long RoHS Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM9MK2
|
|
Part Number: M-FIAM9MK2 |
:
|
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Extra Long RoHS Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM9MN1
|
|
Part Number: M-FIAM9MN1 |
:
|
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Long Modumate Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM9MN2
|
|
Part Number: M-FIAM9MN2 |
:
|
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Long Modumate Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM9MN3
|
|
Part Number: M-FIAM9MN3 |
:
|
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Long Modumate Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Through hole
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM9MS1
|
|
Part Number: M-FIAM9MS1 |
:
|
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Short Modumate Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
M-FIAM9MS3
|
|
Part Number: M-FIAM9MS3 |
:
|
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Short Modumate Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Through hole
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
|
MVA-FIAM5BH
|
 |
Part Number: MVA-FIAM5BH |
:
|
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin MIL-COTS VI Chips
|
Pin Style:
Lug
|
Temperature:
-40 to 100°C
|
Baseplate:
Coldplate
|
Dimensions:
4.69" x 3.62" x 0.81"
119,4 x 92,0 x 20,6 mm |
View details |
|
MVA-FIAM5BM
|
|
Part Number: MVA-FIAM5BM |
:
|
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin MIL-COTS VI Chips
|
Pin Style:
Lug
|
Temperature:
-55 to 100°C
|
Baseplate:
Coldplate
|
Dimensions:
4.69" x 3.62" x 0.81"
119,4 x 92,0 x 20,6 mm |
View details |
|
MVA-FIAM9H
|
|
Part Number: MVA-FIAM9H |
:
|
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Lug
|
Temperature:
-40 to 100°C
|
Baseplate:
Coldplate
|
Dimensions:
4.69" x 3.62" x 0.81"
119,4 x 92,0 x 20,6 mm |
View details |
|
MVA-FIAM9M-C
|
|
Part Number: MVA-FIAM9M-C |
:
|
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Lug
|
Temperature:
-55 to 100°C
|
Baseplate:
Coldplate
|
Dimensions:
4.69" x 3.62" x 0.81"
119,4 x 92,0 x 20,6 mm |
View details |
맨 위로
경기도 성남시 분당구 삼평동 624-5 판교 디지털 센터 A-501
대표전화 031-620-0071 Managed by SemiNet
대표전화 031-620-0071 Managed by SemiNet
