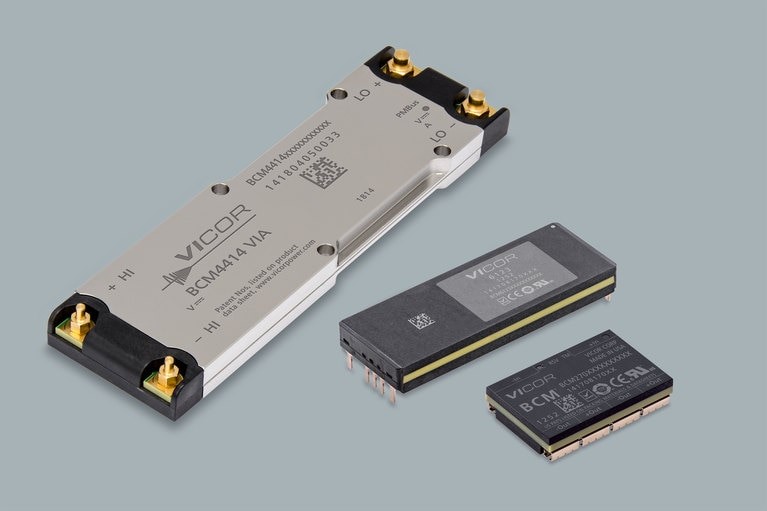

MIL-COTS 고전압 BCM® 버스 컨버터

고전압 양방향 중간 버스 컨버터

MIL-COTS 버스 컨버터 모듈(BCM)은 270V 입력 전압에서 작동하고 절연된 28V 또는 48V 공칭 출력 전압을 제공하는 고효율(최대 98.7%) 고정 비율 모듈이다. 낮은 무게, 고효율 및 높은 전력 밀도를 통해 고객은 증가하는 SWaP-C 요구 사항을 충족할 수 있다. BCM의 넓은 입력 범위는 외부 클램핑 없이 MIL-STD-704 E/F 범위를 달성하는 데 도움이 된다. 저잡음, 고주파 작동은 MIL-STD 준수에 필요한 필터 크기를 최소화한다. BCM은 시스템 설계 유연성을 가능하게 하고 병렬로 다중-kW 어레이를 생성할 수 있다.

FAMILY OVERVIEW

제품 목록

Image		Input (V)	Output (V)	Output Current (A)	K Factor	Control Interface	Mounting	Reverse Operation	Max Capacitance	Temperature	Dimensions	Dimensions	Package
Part Number: MBCM270F450M270A00	Datasheet:	Input (V): 200 - 330	Output (V): 33.4 - 55.1	Output Current (A): 6.25	K Factor: 1/6	Control Interface: Analog	Mounting: J-Lead	Reverse Operation: N	Max Capacitance: 50	Temperature: -55 to 125°C	Dimensions mm: 32.50 x 22.0 x 6.70mm	Dimensions in.: 1.280 x 0.866 x 0.265in	Package: Full Chip
Part Number: MBCM270T450M270A00	Datasheet:	Input (V): 200 - 330	Output (V): 33.4 - 55.1	Output Current (A): 6.25	K Factor: 1/6	Control Interface: Analog	Mounting: Through Hole	Reverse Operation: N	Max Capacitance: 50	Temperature: -55 to 125°C	Dimensions mm: 32.50 x 22.0 x 6.70mm	Dimensions in.: 1.280 x 0.866 x 0.265in	Package: Full Chip
Part Number: MBCM270F338M235A00	Datasheet:	Input (V): 240 - 330	Output (V): 30.0 - 41.25	Output Current (A): 7.3	K Factor: 1/8	Control Interface: Analog	Mounting: J-Lead	Reverse Operation: N	Max Capacitance: 100	Temperature: -55 to 125°C	Dimensions mm: 32.50 x 22.0 x 6.70mm	Dimensions in.: 1.280 x 0.866 x 0.265in	Package: Full Chip
Part Number: BCM384F480T325B00	Datasheet:	Input (V): 360 - 400	Output (V): 45.0 - 50.0	Output Current (A): 7.05	K Factor: 1/8	Control Interface: Analog	Mounting: J-Lead	Reverse Operation: N	Max Capacitance: 100	Temperature: -40 to 125°C	Dimensions mm: 32.50 x 22.0 x 6.70mm	Dimensions in.: 1.280 x 0.866 x 0.265in	Package: Full Chip
Part Number: BCM384T480T325B00	Datasheet:	Input (V): 360 - 400	Output (V): 45.0 - 50.0	Output Current (A): 7.05	K Factor: 1/8	Control Interface: Analog	Mounting: Through Hole	Reverse Operation: N	Max Capacitance: 100	Temperature: -40 to 125°C	Dimensions mm: 32.50 x 22.0 x 6.70mm	Dimensions in.: 1.280 x 0.866 x 0.265in	Package: Full Chip
Part Number: BCM352T440T330A00	Datasheet:	Input (V): 330 - 365	Output (V): 41.3 - 45.6	Output Current (A): 7.7	K Factor: 1/8	Control Interface: Analog	Mounting: Through Hole	Reverse Operation: N	Max Capacitance: 100	Temperature: -40 to 125°C	Dimensions mm: 32.50 x 22.0 x 6.70mm	Dimensions in.: 1.280 x 0.866 x 0.265in	Package: Full Chip
Part Number: BCM352F440T330A00	Datasheet:	Input (V): 330 - 365	Output (V): 41.3 - 45.6	Output Current (A): 7.7	K Factor: 1/8	Control Interface: Analog	Mounting: J-Lead	Reverse Operation: N	Max Capacitance: 100	Temperature: -40 to 125°C	Dimensions mm: 32.50 x 22.0 x 6.70mm	Dimensions in.: 1.280 x 0.866 x 0.265in	Package: Full Chip
Part Number: BCM380P475M800A30	Datasheet:	Input (V): 260 - 410	Output (V): 32.5 - 51.25	Output Current (A): 16.9	K Factor: 1/8	Control Interface: Analog	Mounting: Through Hole	Reverse Operation: N	Max Capacitance: 100	Temperature: -55 to 125°C	Dimensions mm: 63.34 x 22.80 x 7.21mm	Dimensions in.: 2.494 x 0.898 x 0.284in	Package: 6123 ChiP
Part Number: BCM6123TD1E5117T00	Datasheet:	Input (V): 260 - 410	Output (V): 32.5 - 51.25	Output Current (A): 16.9	K Factor: 1/8	Control Interface: Analog	Mounting: Through Hole	Reverse Operation: N	Max Capacitance: 100	Temperature: -40 to 125°C	Dimensions mm: 63.34 x 22.80 x 7.21mm	Dimensions in.: 2.494 x 0.898 x 0.284in	Package: 6123 ChiP
Part Number: BCM380P475M800A31	Datasheet:	Input (V): 260 - 410	Output (V): 32.5 - 51.25	Output Current (A): 16.9	K Factor: 1/8	Control Interface: Digital	Mounting: Through Hole	Reverse Operation: N	Max Capacitance: 100	Temperature: -55 to 125°C	Dimensions mm: 63.34 x 22.80 x 7.21mm	Dimensions in.: 2.494 x 0.898 x 0.284in	Package: 6123 ChiP
Part Number: BCM6123TD1E5117T01	Datasheet:	Input (V): 260 - 410	Output (V): 32.5 - 51.25	Output Current (A): 16.9	K Factor: 1/8	Control Interface: Digital	Mounting: Through Hole	Reverse Operation: N	Max Capacitance: 100	Temperature: -40 to 125°C	Dimensions mm: 63.34 x 22.80 x 7.21mm	Dimensions in.: 2.494 x 0.898 x 0.284in	Package: 6123 ChiP
Part Number: BCM6123TD1E5117T0R	Datasheet:	Input (V): 260 - 410	Output (V): 32.5 - 51.25	Output Current (A): 16.9	K Factor: 1/8	Control Interface: Reverse Analog	Mounting: Through Hole	Reverse Operation: Y	Max Capacitance: 100	Temperature: -40 to 125°C	Dimensions mm: 63.34 x 22.80 x 7.21mm	Dimensions in.: 2.494 x 0.898 x 0.284in	Package: 6123 ChiP
Part Number: BCM380P475M1K2A30	Datasheet:	Input (V): 260 - 410	Output (V): 32.5 - 51.25	Output Current (A): 25.7	K Factor: 1/8	Control Interface: Analog	Mounting: Through Hole	Reverse Operation: N	Max Capacitance: 100	Temperature: -55 to 125°C	Dimensions mm: 63.34 x 22.80 x 7.21mm	Dimensions in.: 2.494 x 0.898 x 0.284in	Package: 6123 ChiP
Part Number: BCM6123TD1E5126T00	Datasheet:	Input (V): 260 - 410	Output (V): 32.5 - 51.25	Output Current (A): 25.7	K Factor: 1/8	Control Interface: Analog	Mounting: Through Hole	Reverse Operation: N	Max Capacitance: 100	Temperature: -40 to 125°C	Dimensions mm: 63.34 x 22.80 x 7.21mm	Dimensions in.: 2.494 x 0.898 x 0.284in	Package: 6123 ChiP
Part Number: BCM380P475M1K2A31	Datasheet:	Input (V): 260 - 410	Output (V): 32.5 - 51.25	Output Current (A): 25.7	K Factor: 1/8	Control Interface: Digital	Mounting: Through Hole	Reverse Operation: N	Max Capacitance: 100	Temperature: -55 to 125°C	Dimensions mm: 63.34 x 22.80 x 7.21mm	Dimensions in.: 2.494 x 0.898 x 0.284in	Package: 6123 ChiP
Part Number: BCM6123TD1E5126T01	Datasheet:	Input (V): 260 - 410	Output (V): 32.5 - 51.25	Output Current (A): 25.7	K Factor: 1/8	Control Interface: Digital	Mounting: Through Hole	Reverse Operation: N	Max Capacitance: 100	Temperature: -40 to 125°C	Dimensions mm: 63.34 x 22.80 x 7.21mm	Dimensions in.: 2.494 x 0.898 x 0.284in	Package: 6123 ChiP
Part Number: BCM6123TD1E5126T0R	Datasheet:	Input (V): 260 - 410	Output (V): 32.5 - 51.25	Output Current (A): 25.7	K Factor: 1/8	Control Interface: Reverse Analog	Mounting: Through Hole	Reverse Operation: Y	Max Capacitance: 100	Temperature: -40 to 125°C	Dimensions mm: 63.34 x 22.80 x 7.21mm	Dimensions in.: 2.494 x 0.898 x 0.284in	Package: 6123 ChiP
Part Number: BCM352T125T300A00	Datasheet:	Input (V): 330 - 365	Output (V): 11.8 - 13.0	Output Current (A): 26.0	K Factor: 1/28	Control Interface: Analog	Mounting: Through Hole	Reverse Operation: N	Max Capacitance: 1200	Temperature: -40 to 125°C	Dimensions mm: 32.50 x 22.0 x 6.70mm	Dimensions in.: 1.280 x 0.866 x 0.265in	Package: Full Chip
Part Number: BCM384T120T300A00	Datasheet:	Input (V): 360 - 400	Output (V): 11.2 - 12.5	Output Current (A): 27.3	K Factor: 1/32	Control Interface: Analog	Mounting: Through Hole	Reverse Operation: N	Max Capacitance: 1000	Temperature: -40 to 125°C	Dimensions mm: 32.50 x 22.0 x 6.70mm	Dimensions in.: 1.280 x 0.866 x 0.265in	Package: Full Chip
Part Number: BCM384F120T300A00	Datasheet:	Input (V): 360 - 400	Output (V): 11.2 - 12.5	Output Current (A): 27.3	K Factor: 1/32	Control Interface: Analog	Mounting: J-Lead	Reverse Operation: N	Max Capacitance: 1000	Temperature: -40 to 125°C	Dimensions mm: 32.50 x 22.0 x 6.70mm	Dimensions in.: 1.280 x 0.866 x 0.265in	Package: Full Chip
Part Number: BCM352F110T300B00	Datasheet:	Input (V): 330 - 365	Output (V): 10.3 - 11.4	Output Current (A): 28.5	K Factor: 1/32	Control Interface: Analog	Mounting: J-Lead	Reverse Operation: N	Max Capacitance: 1200	Temperature: -40 to 125°C	Dimensions mm: 32.50 x 22.0 x 6.70mm	Dimensions in.: 1.280 x 0.866 x 0.265in	Package: Full Chip
Part Number: BCM352T110T300B00	Datasheet:	Input (V): 330 - 365	Output (V): 10.3 - 11.4	Output Current (A): 28.5	K Factor: 1/32	Control Interface: Analog	Mounting: Through Hole	Reverse Operation: N	Max Capacitance: 1200	Temperature: -40 to 125°C	Dimensions mm: 32.50 x 22.0 x 6.70mm	Dimensions in.: 1.280 x 0.866 x 0.265in	Package: Full Chip
Part Number: BCM6123TD0G5030M00	Datasheet:	Input (V): 200 - 400	Output (V): 25.0 - 50.0	Output Current (A): 30.0	K Factor: 1/8	Control Interface: Analog	Mounting: Through Hole	Reverse Operation: Y	Max Capacitance: 200	Temperature: -55 to 125°C	Dimensions mm: 63.34 x 22.80 x 7.21mm	Dimensions in.: 2.494 x 0.898 x 0.284in	Package: 6123 ChiP
Part Number: BCM6123TD0G5030T00	Datasheet:	Input (V): 200 - 400	Output (V): 25.0 - 50.0	Output Current (A): 30.0	K Factor: 1/8	Control Interface: Analog	Mounting: Through Hole	Reverse Operation: Y	Max Capacitance: 200	Temperature: -40 to 125°C	Dimensions mm: 63.34 x 22.80 x 7.21mm	Dimensions in.: 2.494 x 0.898 x 0.284in	Package: 6123 ChiP
Part Number: BCM6123TD0G5030M0P	Datasheet:	Input (V): 200 - 400	Output (V): 25.0 - 50.0	Output Current (A): 30.0	K Factor: 1/8	Control Interface: Digital	Mounting: Through Hole	Reverse Operation: Y	Max Capacitance: 200	Temperature: -55 to 125°C	Dimensions mm: 63.34 x 22.80 x 7.21mm	Dimensions in.: 2.494 x 0.898 x 0.284in	Package: 6123 ChiP
Part Number: BCM6123TD0G5030T0R	Datasheet:	Input (V): 200 - 400	Output (V): 25.0 - 50.0	Output Current (A): 30.0	K Factor: 1/8	Control Interface: Reverse Analog	Mounting: Through Hole	Reverse Operation: Y	Max Capacitance: 200	Temperature: -40 to 125°C	Dimensions mm: 63.34 x 22.80 x 7.21mm	Dimensions in.: 2.494 x 0.898 x 0.284in	Package: 6123 ChiP
Part Number: BCM6123TD0G5030M0R	Datasheet:	Input (V): 200 - 400	Output (V): 25.0 - 50.0	Output Current (A): 30.0	K Factor: 1/8	Control Interface: Reverse Analog	Mounting: Through Hole	Reverse Operation: Y	Max Capacitance: 200	Temperature: -55 to 125°C	Dimensions mm: 63.34 x 22.80 x 7.21mm	Dimensions in.: 2.494 x 0.898 x 0.284in	Package: 6123 ChiP
Part Number: BCM400P500M1K8A30	Datasheet:	Input (V): 260 - 410	Output (V): 32.5 - 51.25	Output Current (A): 35.0	K Factor: 1/8	Control Interface: Analog	Mounting: Through Hole	Reverse Operation: N	Max Capacitance: 100	Temperature: -55 to 125°C	Dimensions mm: 63.34 x 22.80 x 7.21mm	Dimensions in.: 2.494 x 0.898 x 0.284in	Package: 6123 ChiP
Part Number: BCM6123TD1E5135T00	Datasheet:	Input (V): 260 - 410	Output (V): 32.5 - 51.25	Output Current (A): 35.0	K Factor: 1/8	Control Interface: Analog	Mounting: Through Hole	Reverse Operation: N	Max Capacitance: 100	Temperature: -40 to 125°C	Dimensions mm: 63.34 x 22.80 x 7.21mm	Dimensions in.: 2.494 x 0.898 x 0.284in	Package: 6123 ChiP
Part Number: BCM4414VD1E5135T02	Datasheet:	Input (V): 260 - 410	Output (V): 32.5 - 51.3	Output Current (A): 35.0	K Factor: 1/8	Control Interface: Digital	Mounting: Chassis Mount	Reverse Operation: N	Max Capacitance: 100	Temperature: -40 to 100°C	Dimensions mm: 110.60 x 35.50 x 9.40mm	Dimensions in.: 4.35 x 1.40 x 0.37in	Package: 4414 VIA
Part Number: BCM4414BD1E5135T06	Datasheet:	Input (V): 260 - 410	Output (V): 32.5 - 51.3	Output Current (A): 35.0	K Factor: 1/8	Control Interface: Digital	Mounting: Board Mount Short Pin	Reverse Operation: N	Max Capacitance: 100	Temperature: -40 to 100°C	Dimensions mm: 110.60 x 35.50 x 9.40mm	Dimensions in.: 4.35 x 1.40 x 0.37in	Package: 4414 VIA
Part Number: BCM4414BD1E5135C10	Datasheet:	Input (V): 260 - 410	Output (V): 32.5 - 51.3	Output Current (A): 35.0	K Factor: 1/8	Control Interface: Digital	Mounting: Board Mount Long Pin	Reverse Operation: N	Max Capacitance: 100	Temperature: -20 to 100°C	Dimensions mm: 110.60 x 35.50 x 9.40mm	Dimensions in.: 4.35 x 1.40 x 0.37in	Package: 4414 VIA
Part Number: BCM4414VD1E5135C02	Datasheet:	Input (V): 260 - 410	Output (V): 32.5 - 51.3	Output Current (A): 35.0	K Factor: 1/8	Control Interface: Digital	Mounting: Chassis Mount	Reverse Operation: N	Max Capacitance: 100	Temperature: -20 to 100°C	Dimensions mm: 110.60 x 35.50 x 9.40mm	Dimensions in.: 4.35 x 1.40 x 0.37in	Package: 4414 VIA
Part Number: BCM4414BD1E5135C06	Datasheet:	Input (V): 260 - 410	Output (V): 32.5 - 51.3	Output Current (A): 35.0	K Factor: 1/8	Control Interface: Digital	Mounting: Board Mount Short Pin	Reverse Operation: N	Max Capacitance: 100	Temperature: -20 to 100°C	Dimensions mm: 110.60 x 35.50 x 9.40mm	Dimensions in.: 4.35 x 1.40 x 0.37in	Package: 4414 VIA
Part Number: BCM4414BD1E5135T10	Datasheet:	Input (V): 260 - 410	Output (V): 32.5 - 51.3	Output Current (A): 35.0	K Factor: 1/8	Control Interface: Digital	Mounting: Board Mount Long Pin	Reverse Operation: N	Max Capacitance: 100	Temperature: -40 to 100°C	Dimensions mm: 110.60 x 35.50 x 9.40mm	Dimensions in.: 4.35 x 1.40 x 0.37in	Package: 4414 VIA
Part Number: BCM4414VH0E5035T02	Datasheet:	Input (V): 500 - 800	Output (V): 31.25 - 50.0	Output Current (A): 35.0	K Factor: 1/15	Control Interface: Digital	Mounting: Chassis Mount	Reverse Operation: N	Max Capacitance: 470	Temperature: -40 to 100°C	Dimensions mm: 110.60 x 35.50 x 9.40mm	Dimensions in.: 4.35 x 1.40 x 0.37in	Package: 4414 VIA
Part Number: BCM4414BH0E5035M06	Datasheet:	Input (V): 500 - 800	Output (V): 31.25 - 50.0	Output Current (A): 35.0	K Factor: 1/15	Control Interface: Digital	Mounting: Board Mount Short Pin	Reverse Operation: N	Max Capacitance: 470	Temperature: -55 to 100°C	Dimensions mm: 110.60 x 35.50 x 9.40mm	Dimensions in.: 4.35 x 1.40 x 0.37in	Package: 4414 VIA
Part Number: BCM4414BH0E5035M10	Datasheet:	Input (V): 500 - 800	Output (V): 31.25 - 50.0	Output Current (A): 35.0	K Factor: 1/15	Control Interface: Digital	Mounting: Board Mount Long Pin	Reverse Operation: N	Max Capacitance: 470	Temperature: -55 to 100°C	Dimensions mm: 110.60 x 35.50 x 9.40mm	Dimensions in.: 4.35 x 1.40 x 0.37in	Package: 4414 VIA
Part Number: BCM4414VH0E5035M02	Datasheet:	Input (V): 500 - 800	Output (V): 31.25 - 50.0	Output Current (A): 35.0	K Factor: 1/15	Control Interface: Digital	Mounting: Chassis Mount	Reverse Operation: N	Max Capacitance: 470	Temperature: -55 to 100°C	Dimensions mm: 110.60 x 35.50 x 9.40mm	Dimensions in.: 4.35 x 1.40 x 0.37in	Package: 4414 VIA
Part Number: BCM400P500M1K8A31	Datasheet:	Input (V): 260 - 410	Output (V): 32.5 - 51.25	Output Current (A): 35.0	K Factor: 1/8	Control Interface: Digital	Mounting: Through Hole	Reverse Operation: N	Max Capacitance: 100	Temperature: -55 to 125°C	Dimensions mm: 63.34 x 22.80 x 7.21mm	Dimensions in.: 2.494 x 0.898 x 0.284in	Package: 6123 ChiP
Part Number: BCM6123TD1E5135T01	Datasheet:	Input (V): 260 - 410	Output (V): 32.5 - 51.25	Output Current (A): 35.0	K Factor: 1/8	Control Interface: Digital	Mounting: Through Hole	Reverse Operation: N	Max Capacitance: 100	Temperature: -40 to 125°C	Dimensions mm: 63.34 x 22.80 x 7.21mm	Dimensions in.: 2.494 x 0.898 x 0.284in	Package: 6123 ChiP
Part Number: BCM6123TD1E5135T0P	Datasheet:	Input (V): 260 - 410	Output (V): 32.5 - 51.25	Output Current (A): 35.0	K Factor: 1/8	Control Interface: Digital	Mounting: Through Hole	Reverse Operation: Y	Max Capacitance: 100	Temperature: -40 to 125°C	Dimensions mm: 63.34 x 22.80 x 7.21mm	Dimensions in.: 2.494 x 0.898 x 0.284in	Package: 6123 ChiP
Part Number: BCM6123TD1E5135T0R	Datasheet:	Input (V): 260 - 410	Output (V): 32.5 - 51.25	Output Current (A): 35.0	K Factor: 1/8	Control Interface: Reverse Analog	Mounting: Through Hole	Reverse Operation: Y	Max Capacitance: 100	Temperature: -40 to 125°C	Dimensions mm: 63.34 x 22.80 x 7.21mm	Dimensions in.: 2.494 x 0.898 x 0.284in	Package: 6123 ChiP
Part Number: BCM4414BG0F4440T06	Datasheet:	Input (V): 400 - 700	Output (V): 25.0 - 43.7	Output Current (A): 40.0	K Factor: 1/16	Control Interface: Digital	Mounting: Board Mount Short Pin	Reverse Operation: N	Max Capacitance: 470	Temperature: -40 to 100°C	Dimensions mm: 110.60 x 35.50 x 9.40mm	Dimensions in.: 4.35 x 1.40 x 0.37in	Package: 4414 VIA
Part Number: BCM4414BG0F4440C06	Datasheet:	Input (V): 400 - 700	Output (V): 25.0 - 43.7	Output Current (A): 40.0	K Factor: 1/16	Control Interface: Digital	Mounting: Board Mount Short Pin	Reverse Operation: N	Max Capacitance: 470	Temperature: -20 to 100°C	Dimensions mm: 110.60 x 35.50 x 9.40mm	Dimensions in.: 4.35 x 1.40 x 0.37in	Package: 4414 VIA
Part Number: BCM4414BG0F4440C10	Datasheet:	Input (V): 400 - 700	Output (V): 25.0 - 43.7	Output Current (A): 40.0	K Factor: 1/16	Control Interface: Digital	Mounting: Board Mount Long Pin	Reverse Operation: N	Max Capacitance: 470	Temperature: -20 to 100°C	Dimensions mm: 110.60 x 35.50 x 9.40mm	Dimensions in.: 4.35 x 1.40 x 0.37in	Package: 4414 VIA
Part Number: BCM4414BG0F4440T10	Datasheet:	Input (V): 400 - 700	Output (V): 25.0 - 43.7	Output Current (A): 40.0	K Factor: 1/16	Control Interface: Digital	Mounting: Board Mount Long Pin	Reverse Operation: N	Max Capacitance: 470	Temperature: -40 to 100°C	Dimensions mm: 110.60 x 35.50 x 9.40mm	Dimensions in.: 4.35 x 1.40 x 0.37in	Package: 4414 VIA
Part Number: BCM4414VG0F4440C02	Datasheet:	Input (V): 400 - 700	Output (V): 25.0 - 43.7	Output Current (A): 40.0	K Factor: 1/16	Control Interface: Digital	Mounting: Chassis Mount	Reverse Operation: N	Max Capacitance: 470	Temperature: -20 to 100°C	Dimensions mm: 110.60 x 35.50 x 9.40mm	Dimensions in.: 4.35 x 1.40 x 0.37in	Package: 4414 VIA
Part Number: BCM4414VG0F4440T02	Datasheet:	Input (V): 400 - 700	Output (V): 25.0 - 43.7	Output Current (A): 40.0	K Factor: 1/16	Control Interface: Digital	Mounting: Chassis Mount	Reverse Operation: N	Max Capacitance: 470	Temperature: -40 to 100°C	Dimensions mm: 110.60 x 35.50 x 9.40mm	Dimensions in.: 4.35 x 1.40 x 0.37in	Package: 4414 VIA
Part Number: BCM4414VG0F4440M02	Datasheet:	Input (V): 400 - 700	Output (V): 25.0 - 43.7	Output Current (A): 40.0	K Factor: 1/16	Control Interface: Digital	Mounting: Chassis Mount	Reverse Operation: N	Max Capacitance: 470	Temperature: -55 to 100°C	Dimensions mm: 110.60 x 35.50 x 9.40mm	Dimensions in.: 4.35 x 1.40 x 0.37in	Package: 4414 VIA
Part Number: BCM4414BG0F4440M10	Datasheet:	Input (V): 400 - 700	Output (V): 25.0 - 43.7	Output Current (A): 40.0	K Factor: 1/16	Control Interface: Digital	Mounting: Board Mount Long Pin	Reverse Operation: N	Max Capacitance: 470	Temperature: -55 to 100°C	Dimensions mm: 110.60 x 35.50 x 9.40mm	Dimensions in.: 4.35 x 1.40 x 0.37in	Package: 4414 VIA
Part Number: BCM4414BG0F4440M06	Datasheet:	Input (V): 400 - 700	Output (V): 25.0 - 43.7	Output Current (A): 40.0	K Factor: 1/16	Control Interface: Digital	Mounting: Board Mount Short Pin	Reverse Operation: N	Max Capacitance: 470	Temperature: -55 to 100°C	Dimensions mm: 110.60 x 35.50 x 9.40mm	Dimensions in.: 4.35 x 1.40 x 0.37in	Package: 4414 VIA
Part Number: BCM6123TD1E2662T00	Datasheet:	Input (V): 260 - 410	Output (V): 16.3 - 25.6	Output Current (A): 62.5	K Factor: 1/16	Control Interface: Analog	Mounting: Through Hole	Reverse Operation: N	Max Capacitance: 1000	Temperature: -40 to 125°C	Dimensions mm: 61.00 x 25.14 x 7.21mm	Dimensions in.: 2.402 x 0.990 x 0.284in	Package: 6123 ChiP
Part Number: BCM6123TD1E2663M00	Datasheet:	Input (V): 260 - 410	Output (V): 16.3 - 25.6	Output Current (A): 62.5	K Factor: 1/16	Control Interface: Analog	Mounting: Through Hole	Reverse Operation: N	Max Capacitance: 1000	Temperature: -55 to 125°C	Dimensions mm: 61.00 x 25.14 x 7.21mm	Dimensions in.: 2.402 x 0.990 x 0.284in	Package: 6123 ChiP
Part Number: BCM6123TD1E2663T00	Datasheet:	Input (V): 260 - 410	Output (V): 16.3 - 25.6	Output Current (A): 62.5	K Factor: 1/16	Control Interface: Analog	Mounting: Through Hole	Reverse Operation: N	Max Capacitance: 1000	Temperature: -40 to 125°C	Dimensions mm: 61.00 x 25.14 x 7.21mm	Dimensions in.: 2.402 x 0.990 x 0.284in	Package: 6123 ChiP
Part Number: BCM4414BD1E2663C06	Datasheet:	Input (V): 260 - 410	Output (V): 16.3 - 25.6	Output Current (A): 62.5	K Factor: 1/16	Control Interface: Digital	Mounting: Board Mount Short Pin	Reverse Operation: Y	Max Capacitance: 1000	Temperature: -20 to 100°C	Dimensions mm: 110.60 x 35.50 x 9.40mm	Dimensions in.: 4.35 x 1.40 x 0.37in	Package: 4414 VIA
Part Number: BCM4414BD1E2663T10	Datasheet:	Input (V): 260 - 410	Output (V): 16.3 - 25.6	Output Current (A): 62.5	K Factor: 1/16	Control Interface: Digital	Mounting: Board Mount Long Pin	Reverse Operation: Y	Max Capacitance: 1000	Temperature: -40 to 100°C	Dimensions mm: 110.60 x 35.50 x 9.40mm	Dimensions in.: 4.35 x 1.40 x 0.37in	Package: 4414 VIA
Part Number: BCM4414VD1E2663C02	Datasheet:	Input (V): 260 - 410	Output (V): 16.3 - 25.6	Output Current (A): 62.5	K Factor: 1/16	Control Interface: Digital	Mounting: Chassis Mount	Reverse Operation: Y	Max Capacitance: 1000	Temperature: -20 to 100°C	Dimensions mm: 110.60 x 35.50 x 9.40mm	Dimensions in.: 4.35 x 1.40 x 0.37in	Package: 4414 VIA
Part Number: BCM4414VD1E2663T02	Datasheet:	Input (V): 260 - 410	Output (V): 16.3 - 25.6	Output Current (A): 62.5	K Factor: 1/16	Control Interface: Digital	Mounting: Chassis Mount	Reverse Operation: Y	Max Capacitance: 1000	Temperature: -40 to 100°C	Dimensions mm: 110.60 x 35.50 x 9.40mm	Dimensions in.: 4.35 x 1.40 x 0.37in	Package: 4414 VIA
Part Number: BCM4414BD1E2663T06	Datasheet:	Input (V): 260 - 410	Output (V): 16.3 - 25.6	Output Current (A): 62.5	K Factor: 1/16	Control Interface: Digital	Mounting: Board Mount Short Pin	Reverse Operation: Y	Max Capacitance: 1000	Temperature: -40 to 100°C	Dimensions mm: 110.60 x 35.50 x 9.40mm	Dimensions in.: 4.35 x 1.40 x 0.37in	Package: 4414 VIA
Part Number: BCM4414BD1E2663C10	Datasheet:	Input (V): 260 - 410	Output (V): 16.3 - 25.6	Output Current (A): 62.5	K Factor: 1/16	Control Interface: Digital	Mounting: Board Mount Long Pin	Reverse Operation: Y	Max Capacitance: 1000	Temperature: -20 to 100°C	Dimensions mm: 110.60 x 35.50 x 9.40mm	Dimensions in.: 4.35 x 1.40 x 0.37in	Package: 4414 VIA
Part Number: BCM6123TD1E2662T01	Datasheet:	Input (V): 260 - 410	Output (V): 16.3 - 25.6	Output Current (A): 62.5	K Factor: 1/16	Control Interface: Digital	Mounting: Through Hole	Reverse Operation: N	Max Capacitance: 1000	Temperature: -40 to 125°C	Dimensions mm: 61.00 x 25.14 x 7.21mm	Dimensions in.: 2.402 x 0.990 x 0.284in	Package: 6123 ChiP
Part Number: BCM6123TD1E2663T01	Datasheet:	Input (V): 260 - 410	Output (V): 16.3 - 25.6	Output Current (A): 62.5	K Factor: 1/16	Control Interface: Digital	Mounting: Through Hole	Reverse Operation: N	Max Capacitance: 1000	Temperature: -40 to 125°C	Dimensions mm: 61.00 x 25.14 x 7.21mm	Dimensions in.: 2.402 x 0.990 x 0.284in	Package: 6123 ChiP
Part Number: BCM6123TD1E2663T0R	Datasheet:	Input (V): 260 - 410	Output (V): 16.3 - 25.6	Output Current (A): 62.5	K Factor: 1/16	Control Interface: Reverse Analog	Mounting: Through Hole	Reverse Operation: Y	Max Capacitance: 1000	Temperature: -40 to 125°C	Dimensions mm: 61.00 x 25.14 x 7.21mm	Dimensions in.: 2.402 x 0.990 x 0.284in	Package: 6123 ChiP
Part Number: BCM6135CD1E5165T00	Datasheet:	Input (V): 260 - 410	Output (V): 31.06 - 51.25	Output Current (A): 65.0	K Factor: 1/8	Control Interface: Digital	Mounting: Chassis Mount	Reverse Operation: N	Max Capacitance: 100	Temperature: -40 to 125°C	Dimensions mm: 61.33 x 35.35 x 7.42mm	Dimensions in.: 2.415 x 1.392 x 0.292in	Package: 6135
Part Number: BCM384P120M800AC0	Datasheet:	Input (V): 260 - 410	Output (V): 8.1 - 12.8	Output Current (A): 68.0	K Factor: 1/32	Control Interface: Analog	Mounting: Through Hole	Reverse Operation: N	Max Capacitance: 1000	Temperature: -55 to 125°C	Dimensions mm: 61.00 x 25.14 x 7.21mm	Dimensions in.: 2.402 x 0.990 x 0.284in	Package: 6123 ChiP
Part Number: BCM6123TD1E1368T00	Datasheet:	Input (V): 260 - 410	Output (V): 8.1 - 12.8	Output Current (A): 68.0	K Factor: 1/32	Control Interface: Analog	Mounting: Through Hole	Reverse Operation: N	Max Capacitance: 1000	Temperature: -40 to 125°C	Dimensions mm: 61.00 x 25.14 x 7.21mm	Dimensions in.: 2.402 x 0.990 x 0.284in	Package: 6123 ChiP
Part Number: BCM384P120M800AC1	Datasheet:	Input (V): 260 - 410	Output (V): 8.1 - 12.8	Output Current (A): 68.0	K Factor: 1/32	Control Interface: Digital	Mounting: Through Hole	Reverse Operation: N	Max Capacitance: 1000	Temperature: -55 to 125°C	Dimensions mm: 61.00 x 25.14 x 7.21mm	Dimensions in.: 2.402 x 0.990 x 0.284in	Package: 6123 ChiP
Part Number: BCM6123TD1E1368T01	Datasheet:	Input (V): 260 - 410	Output (V): 8.1 - 12.8	Output Current (A): 68.0	K Factor: 1/32	Control Interface: Digital	Mounting: Through Hole	Reverse Operation: N	Max Capacitance: 1000	Temperature: -40 to 125°C	Dimensions mm: 61.00 x 25.14 x 7.21mm	Dimensions in.: 2.402 x 0.990 x 0.284in	Package: 6123 ChiP
Part Number: BCM6123TD1E1368T0R	Datasheet:	Input (V): 260 - 410	Output (V): 8.1 - 12.8	Output Current (A): 68.0	K Factor: 1/32	Control Interface: Reverse Analog	Mounting: Through Hole	Reverse Operation: Y	Max Capacitance: 1000	Temperature: -40 to 125°C	Dimensions mm: 61.00 x 25.14 x 7.21mm	Dimensions in.: 2.402 x 0.990 x 0.284in	Package: 6123 ChiP
Part Number: BCM6123TD1E13A3T00	Datasheet:	Input (V): 260 - 410	Output (V): 8.1 - 12.8	Output Current (A): 125.0	K Factor: 1/32	Control Interface: Analog	Mounting: Through Hole	Reverse Operation: N	Max Capacitance: 1000	Temperature: -40 to 125°C	Dimensions mm: 61.00 x 25.14 x 7.21mm	Dimensions in.: 2.402 x 0.990 x 0.284in	Package: 6123 ChiP
Part Number: BCM6123TD1E13A3M00	Datasheet:	Input (V): 260 - 410	Output (V): 8.1 - 12.8	Output Current (A): 125.0	K Factor: 1/32	Control Interface: Analog	Mounting: Through Hole	Reverse Operation: N	Max Capacitance: 1000	Temperature: -55 to 125°C	Dimensions mm: 61.00 x 25.14 x 7.21mm	Dimensions in.: 2.402 x 0.990 x 0.284in	Package: 6123 ChiP
Part Number: BCM4414VD1E13A3T02	Datasheet:	Input (V): 260 - 410	Output (V): 8.1 - 12.8	Output Current (A): 125.0	K Factor: 1/32	Control Interface: Digital	Mounting: Chassis Mount	Reverse Operation: N	Max Capacitance: 1000	Temperature: -40 to 100°C	Dimensions mm: 110.60 x 35.50 x 9.40mm	Dimensions in.: 4.35 x 1.40 x 0.37in	Package: 4414 VIA
Part Number: BCM4414BD1E13A3C06	Datasheet:	Input (V): 260 - 410	Output (V): 8.1 - 12.8	Output Current (A): 125.0	K Factor: 1/32	Control Interface: Digital	Mounting: Board Mount Short Pin	Reverse Operation: N	Max Capacitance: 1000	Temperature: -20 to 100°C	Dimensions mm: 110.60 x 35.50 x 9.40mm	Dimensions in.: 4.35 x 1.40 x 0.37in	Package: 4414 VIA
Part Number: BCM4414BD1E13A3T06	Datasheet:	Input (V): 260 - 410	Output (V): 8.1 - 12.8	Output Current (A): 125.0	K Factor: 1/32	Control Interface: Digital	Mounting: Board Mount Short Pin	Reverse Operation: N	Max Capacitance: 1000	Temperature: -40 to 100°C	Dimensions mm: 110.60 x 35.50 x 9.40mm	Dimensions in.: 4.35 x 1.40 x 0.37in	Package: 4414 VIA
Part Number: BCM4414BD1E13A3T10	Datasheet:	Input (V): 260 - 410	Output (V): 8.1 - 12.8	Output Current (A): 125.0	K Factor: 1/32	Control Interface: Digital	Mounting: Board Mount Long Pin	Reverse Operation: N	Max Capacitance: 1000	Temperature: -40 to 100°C	Dimensions mm: 110.60 x 35.50 x 9.40mm	Dimensions in.: 4.35 x 1.40 x 0.37in	Package: 4414 VIA
Part Number: BCM4414BD1E13A3C10	Datasheet:	Input (V): 260 - 410	Output (V): 8.1 - 12.8	Output Current (A): 125.0	K Factor: 1/32	Control Interface: Digital	Mounting: Board Mount Long Pin	Reverse Operation: N	Max Capacitance: 1000	Temperature: -20 to 100°C	Dimensions mm: 110.60 x 35.50 x 9.40mm	Dimensions in.: 4.35 x 1.40 x 0.37in	Package: 4414 VIA
Part Number: BCM4414VD1E13A3C02	Datasheet:	Input (V): 260 - 410	Output (V): 8.1 - 12.8	Output Current (A): 125.0	K Factor: 1/32	Control Interface: Digital	Mounting: Chassis Mount	Reverse Operation: N	Max Capacitance: 1000	Temperature: -20 to 100°C	Dimensions mm: 110.60 x 35.50 x 9.40mm	Dimensions in.: 4.35 x 1.40 x 0.37in	Package: 4414 VIA
Part Number: BCM384P120M1K5AC1	Datasheet:	Input (V): 260 - 410	Output (V): 8.1 - 12.8	Output Current (A): 125.0	K Factor: 1/32	Control Interface: Digital	Mounting: Through Hole	Reverse Operation: N	Max Capacitance: 1000	Temperature: -55 to 125°C	Dimensions mm: 61.00 x 25.14 x 7.21mm	Dimensions in.: 2.402 x 0.990 x 0.284in	Package: 6123 ChiP
Part Number: BCM6123TD1E13A3T01	Datasheet:	Input (V): 260 - 410	Output (V): 8.1 - 12.8	Output Current (A): 125.0	K Factor: 1/32	Control Interface: Digital	Mounting: Through Hole	Reverse Operation: N	Max Capacitance: 1000	Temperature: -40 to 125°C	Dimensions mm: 61.00 x 25.14 x 7.21mm	Dimensions in.: 2.402 x 0.990 x 0.284in	Package: 6123 ChiP
Part Number: BCM6123TD1E13A3T0P	Datasheet:	Input (V): 260 - 410	Output (V): 8.1 - 12.8	Output Current (A): 125.0	K Factor: 1/32	Control Interface: Digital	Mounting: Through Hole	Reverse Operation: Y	Max Capacitance: 1000	Temperature: -40 to 125°C	Dimensions mm: 61.00 x 25.14 x 7.21mm	Dimensions in.: 2.402 x 0.990 x 0.284in	Package: 6123 ChiP
Part Number: BCM6123TD1E13A3T0R	Datasheet:	Input (V): 260 - 410	Output (V): 8.1 - 12.8	Output Current (A): 125.0	K Factor: 1/32	Control Interface: Reverse Analog	Mounting: Through Hole	Reverse Operation: Y	Max Capacitance: 1000	Temperature: -40 to 125°C	Dimensions mm: 61.00 x 25.14 x 7.21mm	Dimensions in.: 2.402 x 0.990 x 0.284in	Package: 6123 ChiP
